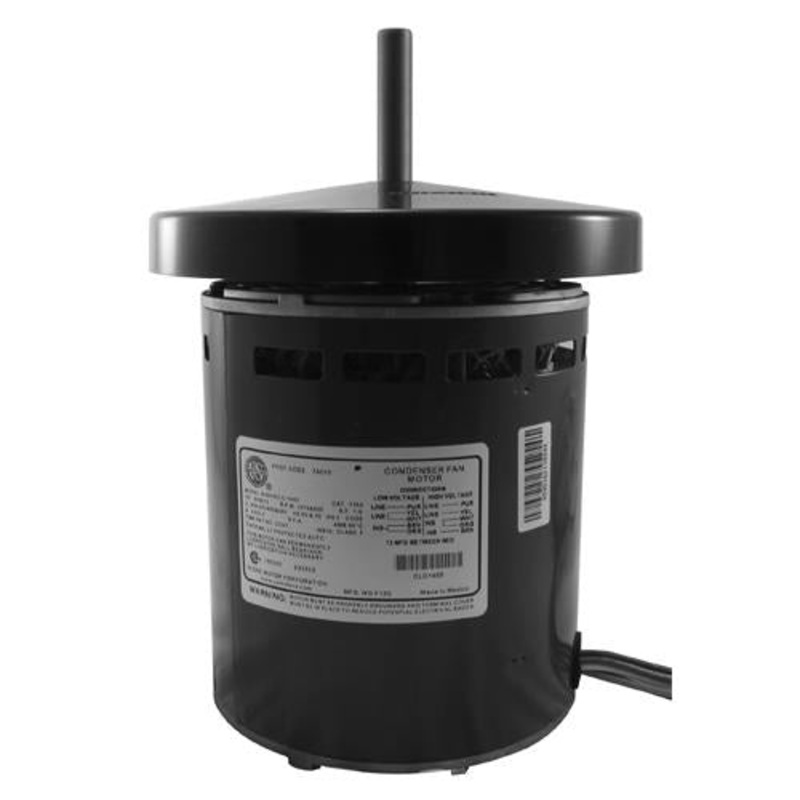

Model 1177, Us Motors, K055DSZ1214011B, K55HXDSZ-1214,K055DSZ1214011B. Replaced Omnidrive SS1506,

• Horsepower :1/2
• Voltage :575
• Amps :1.90
• RPM :1075
• Frequency :60 Hz
• Length :5-13/16″
• “C” Dim. :8-13/16″
• Enclosure :Open Opposite Shaft End
• Shaft Dim. :1/2″ x 3.00″
• Type :Permanent Split Capacitor
• Speeds :1
• Diameter :5-5/8″
• Frame :48Y
• Bearings :Ball
• Rotation :CCWLE
• Protector :Automatic
• Service Factor :1.00
• Phase :1

• Capacitor Rating :7.5MFD-370VAC

• Feature(s) :Class ‘B’ Insulation, Lug Mounts, C-Box Included, Canopy Shield Included
• Weight (lbs.) :18

• Permanent Split Capacitor Condenser Fan
• 5.6 Diameter Open Dripproof Air Over
• Enclosed End Sheild at Shaft End
• Mount Vertical Shaft Up
