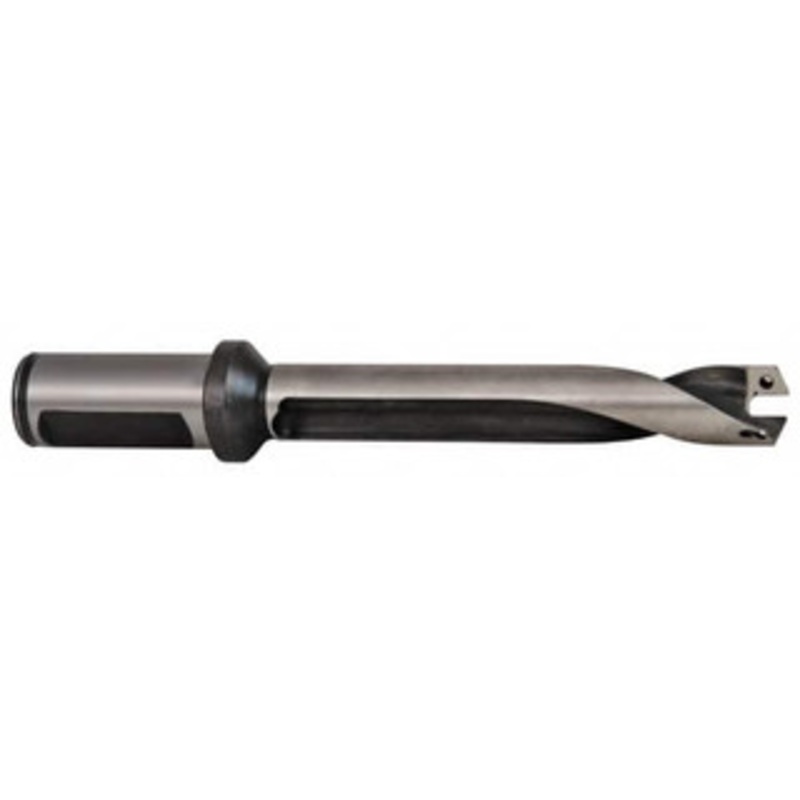

Name: Allied Machine 0.4724 to 0.5114 Diam 3xD 1-35/64 Max Depth Helical Flute Spade Drill 3/4 Diam Straight Shank with Flange, 2-5/8 Body Length, 2-5/8 Flute Length, 4-21/32 OAL, Series 12 60312H-075C - 93730935
SKU: 9.3730935E7
Availability: InStock

Allied Machine 0.4724 to 0.5114 Diam 3xD 1-35/64 Max Depth Helical Flute Spade Drill 3/4 Diam Straight Shank with Flange, 2-5/8 Body Length, 2-5/8 Flute Length, 4-21/32 OAL, Series 12 60312H-075C – 93730935

$149.00
~~$383.40~~

Availability: In Stock

Allied Machine and Engineering 0.4724" to 0.5114" Diam 3xD 1-35/64" Max Depth Helical Flute Spade Drill 3/4" Diam Straight Shank with Flange, 2-5/8" Body Length, 2-5/8" Flute Length, 4-21/32" OAL, Series 12Manufacturer Part #: 60312H-075CS/N: 93730935UNSPS

Category: Cutting Tools

Description Reviews (0)

Allied Machine and Engineering 0.4724″ to 0.5114″ Diam 3xD 1-35/64″ Max Depth Helical Flute Spade Drill 3/4″ Diam Straight Shank with Flange, 2-5/8″ Body Length, 2-5/8″ Flute Length, 4-21/32″ OAL, Series 12

Manufacturer Part #: 60312H-075C

S/N: 93730935

UNSPSC: 23241600

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Minimum Drill Diameter (Decimal Inch) 0.4724 Maximum Drill Diameter (Decimal Inch) 0.5117 Maximum Drill Depth (Inch) 1-35/64 Maximum Drill Depth (Decimal Inch) 1.5470 Spade Drill Length Standard Shank Type Cylindrical Shank Diameter (Inch) 3/4 Shank Diameter (Decimal Inch) 0.7500 Length Type Standard Drill Depth by Diameter Ratio 3xD Tool Material Steel Overall Length (Inch) 4-21/32 Coolant Entry Style Code 1-Axial Concentric Entry Series GEN3SYS 12 Flute Type Helical Flute Length (Inch) 1-35/64 Body Length (Inch) 2-5/8 Shank Length (Inch) 2-1/32 Tool Performance General Purpose Coolant Hole Thread Size 1/8 Coolant Hole Thread Type NPT Primary Workpiece Material Universal Primary Workpiece Material Code K, M, N, P Coolant Through Yes
