Allied Machine 1-3/16-12, 1.102 Pilot Diam, 1.783 Spotface Diam, 0.906 Pilot Length, Tube Dash 14, Indexable Porting Tool Takes 2 Inserts, J1926-08-C3H, J1926-08-C5A Insert Compatibility, IS0 11926-1, J1926-142-125F – 76038959

Allied Machine 1-3/16-12, 1.102 Pilot Diam, 1.783 Spotface Diam, 0.906 Pilot Length, Tube Dash 14, Indexable Porting Tool Takes 2 Inserts, J1926-08-C3H, J1926-08-C5A Insert Compatibility, IS0 11926-1, J1926-142-125F – 76038959

  • $146.00
  • $996.45
Availability: In Stock

Allied Machine and Engineering 1-3/16-12, 1.102" Pilot Diam, 1.783" Spotface Diam, 0.906" Pilot Length, Tube Dash 14, Indexable Porting Tool Takes 2 Inserts, J1926-08-C3H, J1926-08-C5A Insert Compatibility, IS0 11926-1, SAE J1926-1/MS-16142Manufacturer Par

Category:
Share:
payment
Description Reviews (0)

Allied Machine and Engineering 1-3/16-12, 1.102″ Pilot Diam, 1.783″ Spotface Diam, 0.906″ Pilot Length, Tube Dash 14, Indexable Porting Tool Takes 2 Inserts, J1926-08-C3H, J1926-08-C5A Insert Compatibility, IS0 11926-1, SAE J1926-1/MS-16142

Manufacturer Part #: J1926-142-125F

S/N: 76038959

UNSPSC: 23241603

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

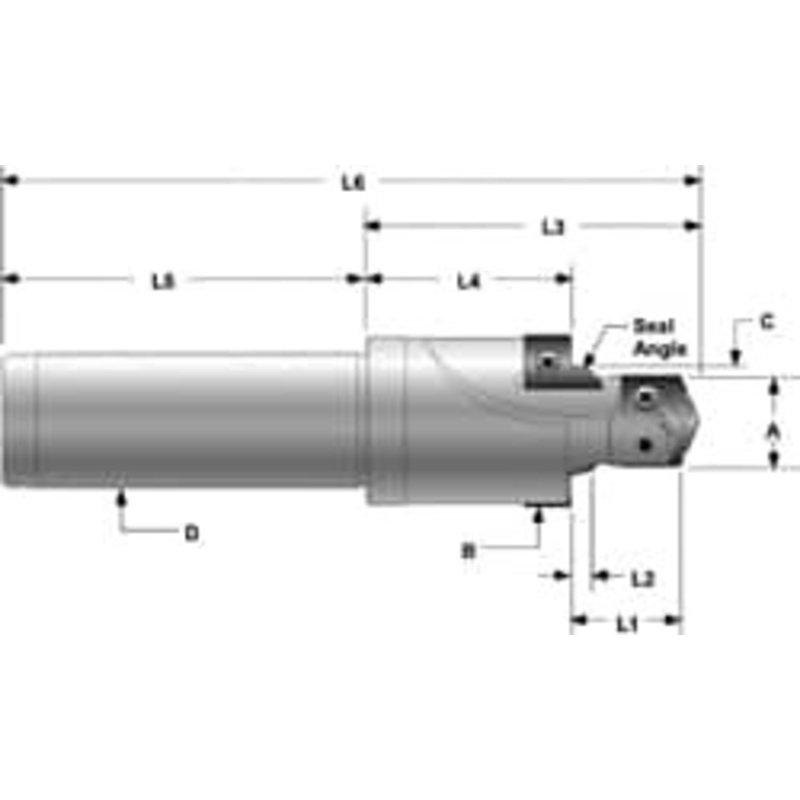

Port Standard Designation IS0 11926-1, SAE J1926-1/MS-16142 Pilot Insert Type Spade Blade Insert Port Thread Size 1-3/16-12 Tube Dash Number 14 Pilot Diameter (Decimal Inch) 1.1020 Spotface Diameter (Decimal Inch) 1.7830 Shank Diameter (Inch) 1-1/4 Number of Porting Inserts 2 Porting Diameter (Decimal Inch) 1.2760 Overall Length (Decimal Inch) 4.9210 Through Coolant NonThrough Coolant Porting Angle 15 Porting Angle Length (Decimal Inch) 0.1380 Head Length (Decimal Inch) 2.6400 Shank Length (Decimal Inch) 2.2810 Series AccuPort 432
