Powerful parallel clamping at its best.

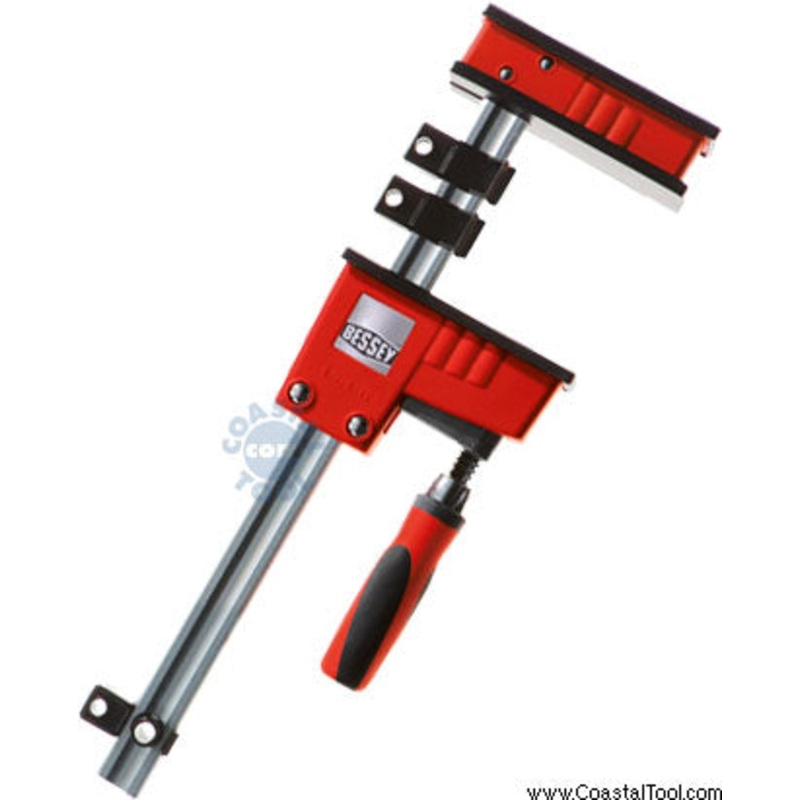

Use the Bessey K Body Revo Clamp anywhere where high pressure clamping, 90 degree clamping or powerful spreading is required. With clamping forces up to 1500 lbs, 30% larger clamping surfaces and sensible accessories the Revo clamp can do the job. The Bessey K-Body Revo Clamp is also suited for accurate adjustment of corners and offset edges

Specifications:

• Throat: 3-3/4″
• Rail Size: 1-1/8″x 3/8″
• Nominal Pressure: 1,500 lbs

Features:

• Large flat parallel clamping surface of the K Body Revo (30% larger than the previous version) is made of impact and break resistant polyamide comes with 3 replaceable pressure caps that are glue, paint and grease resistant.
• Internal frame ensures accurate 90 degree angles; very sturdy even at maximum pressures.
• New larger, more comfortable handle. High quality 2-component composite handle with soft plastic insert for comfort while working.
• Rail protection pieces made of impact resistant polyamide elevate workpiece from the rail.
• The K Body Revo is designed with removable tail-piece ensures clamp sits parallel to the rail and can easily be removed to reverse sliding arm for use as a spreader. The hole allows for the clamp to be fixed to a workbench.
