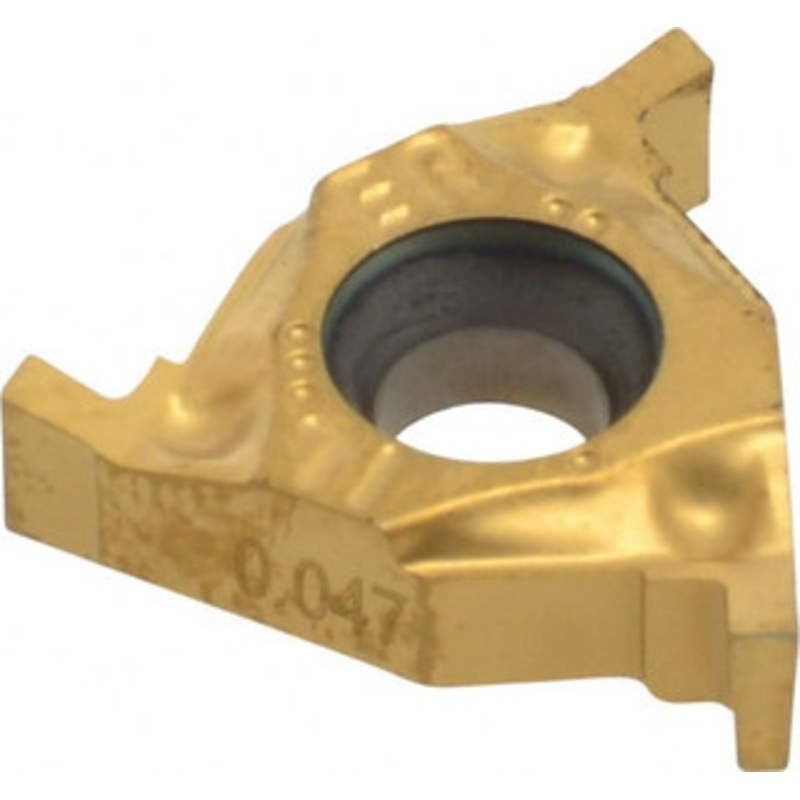

Carmex 16 ER/IL 0.047 BXC Carbide Grooving Insert TiN Finish, External RH Internal LH, 0.047 Cutting Width, 0.063 Max Depth 16ER/IL0.047BXC – 82331547

Carmex 16 ER/IL 0.047 BXC Carbide Grooving Insert TiN Finish, External RH Internal LH, 0.047 Cutting Width, 0.063 Max Depth 16ER/IL0.047BXC – 82331547

  • $14.06
  • $23.43
Availability: In Stock

Carmex 16 ER/IL 0.047 BXC Carbide Grooving Insert TiN Finish, External RH Internal LH, 0.047" Cutting Width, 0.063" Max Depth Manufacturer Part #: 16ER/IL0.047BXC S/N: 82331547 UNSPSC: 23242105 (Minimum Order Quantity=10, Package Quantity=1) (Please order

Category:
Share:
payment
Description Reviews (0)

Carmex 16 ER/IL 0.047 BXC Carbide Grooving Insert TiN Finish, External RH Internal LH, 0.047″ Cutting Width, 0.063″ Max Depth

Manufacturer Part #: 16ER/IL0.047BXC

S/N: 82331547

UNSPSC: 23242105

(Minimum Order Quantity=10, Package Quantity=1)

(Please order in multiples of 10)

Specifications:

Insert Style 16ER/IL Insert Size Code 0047 Cutting Width (Decimal Inch) 0.0470 Insert Hand Left Hand, Right Hand Maximum Depth of Cut (Decimal Inch) 0.0630 Insert Material Solid Carbide Manufacturer Grade BXC Full Radius No Corner Radius (Decimal Inch) 0.0040 Rake Positive Insert Size 0.047 Material Grade C6 Maximum Depth Of Cut Range (Decimal Inch) 0.0000 to 0.0750 Multi-use Tool No Series 16 Coating Process PVD Rake Angle 15.00 Overall Length (mm) 16.00 Primary Workpiece Material Cast Iron, Steel Primary Workpiece Material Code K, P Standards ISO External Relief Angle 10 Internal Relief Angle 15 Inscribed Circle (Inch) 3/8 Hole Diameter (Decimal Inch) 0.1570 Coating/Finish TiN
