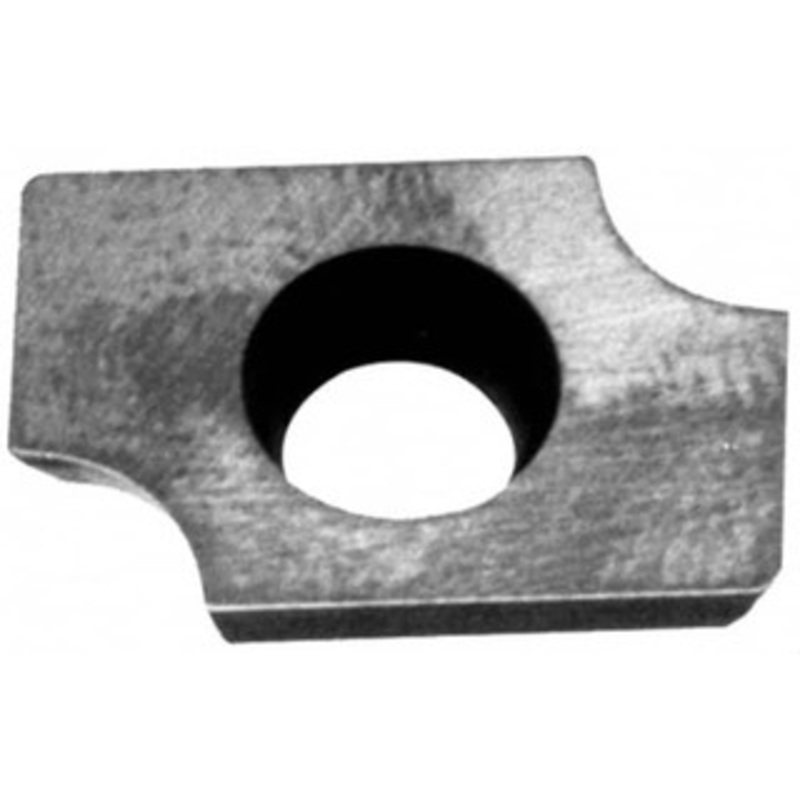

Cutting Tool Technologies CV12120 C2 .120RAD Carbide Milling Insert Uncoated, 5/8″ Long x 1/8″ Thick x 3/8″ Wide
Manufacturer Part #: CV12120
S/N: 00543249
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style |
CV |
| Insert Size |
12 |
| Insert Material |
Solid Carbide |
| Insert Shape |
Rectangle |
| Manufacturer Grade |
C1, C2 |
| Corner Radius (Decimal Inch) |
0.1200 |
| Number Of Cutting Edges |
2 |
| Thickness (Decimal Inch – 4 Decimals) |
0.1250 |
| Coating/Finish |
Bright/Uncoated |
| Maximum Depth of Cut (Decimal Inch) |
0.1200 |
| Insert Size Code |
12120 |
| Material Grade |
C1, C2 |
| Width (Inch) |
3/8 |
| Length (Inch) |
5/8 |
| Thickness (Inch) |
1/8 |
| Inscribed Circle (Inch) |
3/8 |
| Inscribed Circle (Decimal Inch) |
0.3750 |
| Thickness Range (Decimal Inch) |
0.1250 to 0.1500 |
| Length Range (Decimal Inch) |
0.6000 to 0.6500 |
| Insert Hand |
Right Hand |
| Series |
CV |
| Coating Process |
Uncoated |
| Rake |
Positive |
| Primary Workpiece Material |
Non-Ferrous Metal, Superalloys & Titanium |
| Primary Workpiece Material Code |
N, S |
| Secondary Workpiece Material |
Steel, Stainless Steel, Cast Iron |
| Secondary Workpiece Material Code |
P, M, K |
| Ansi Code |
CV12120 |
| Iso Code |
CV12120 |
| Standards |
ANSI, ISO |
| Concave Radius (Decimal Inch) |
0.1200 |
| Rake Angle |
0 |
| Cutting Edge Style |
Ground |
| Manufacturers Catalog Number |
CV12120 |
| Cutter Series Compatibility |
CAV |
| Chip Breaker |
Flat Top |
| Material Application |
Non-Ferrous Metal, Superalloys & Titanium |
| UNSPSC Code |
23291601 |
| Insert Holding Method |
Screw |
| Coating Classification |
Uncoated |
| Single or Double Sided Insert |
Single |
| Included Angle Degree |
90 |
| Width (Decimal Inch – 4 Decimals) |
0.3750 |
| Multi-Use Tool |
No |
| Length (Decimal Inch – 4 Decimals) |
0.6250 |
