Cutting Tool Technologies CV12120T C5TIN .120RAD Carbide Milling Insert TiN Finish, 5/8 Long x 1/8 Thick x 3/8 Wide CV12120T – 00543348

Cutting Tool Technologies CV12120T C5TIN .120RAD Carbide Milling Insert TiN Finish, 5/8 Long x 1/8 Thick x 3/8 Wide CV12120T – 00543348

  • $23.27
  • $38.78
Availability: In Stock

Cutting Tool Technologies CV12120T C5TIN .120RAD Carbide Milling Insert TiN Finish, 5/8" Long x 1/8" Thick x 3/8" WideManufacturer Part #: CV12120TS/N: 00543348UNSPSC: 23291601(Minimum Order Quantity=1, Package Quantity=1)Specifications:Insert StyleCVInser

Category:
Share:
payment
Description Reviews (0)

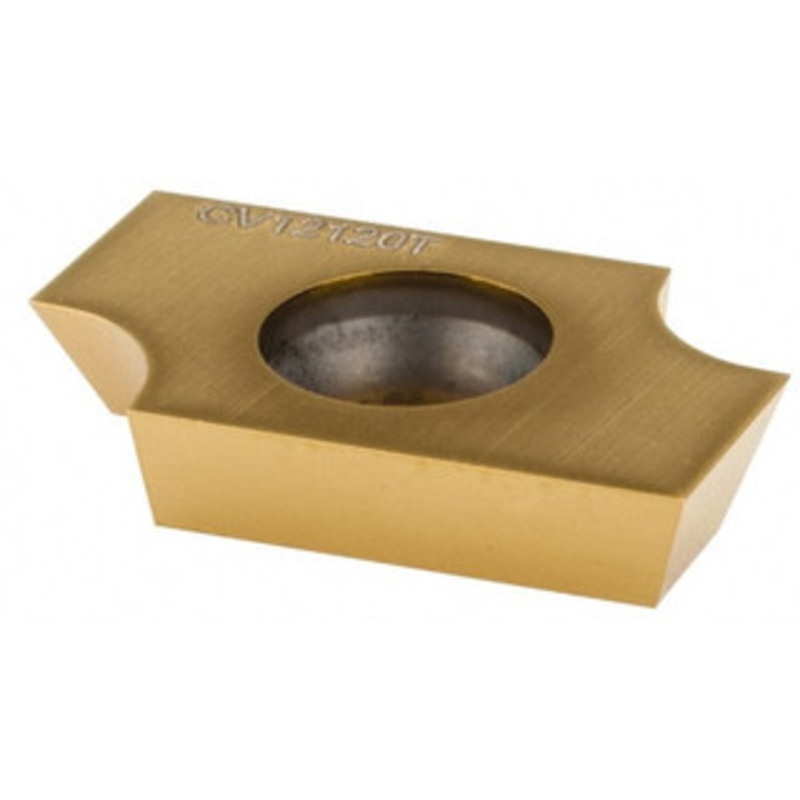

Cutting Tool Technologies CV12120T C5TIN .120RAD Carbide Milling Insert TiN Finish, 5/8″ Long x 1/8″ Thick x 3/8″ Wide

Manufacturer Part #: CV12120T

S/N: 00543348

UNSPSC: 23291601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style CV Insert Size 12 Insert Material Solid Carbide Insert Shape Rectangle Manufacturer Grade C5 Corner Radius (Decimal Inch) 0.1200 Number Of Cutting Edges 2 Thickness (Decimal Inch – 4 Decimals) 0.1250 Coating/Finish TiN Maximum Depth of Cut (Decimal Inch) 0.1200 Insert Size Code 12120 Material Grade C5 Width (Inch) 3/8 Length (Inch) 5/8 Thickness (Inch) 1/8 Inscribed Circle (Inch) 3/8 Inscribed Circle (Decimal Inch) 0.3750 Thickness Range (Decimal Inch) 0.1250 to 0.1500 Length Range (Decimal Inch) 0.6000 to 0.6500 Insert Hand Right Hand Series CV Coating Process PVD Rake Positive Primary Workpiece Material Steel Primary Workpiece Material Code P Secondary Workpiece Material Stainless Steel Secondary Workpiece Material Code M Ansi Code CV12120T Iso Code CV12120T Standards ANSI, ISO Concave Radius (Decimal Inch) 0.1200 Rake Angle 0 Cutting Edge Style Ground Manufacturers Catalog Number CV12120T Cutter Series Compatibility CAV Chip Breaker Flat Top Material Application Steel Insert Holding Method Screw Coating Classification PVD Single or Double Sided Insert Single Included Angle Degree 90 Width (Decimal Inch – 4 Decimals) 0.3750 Multi-Use Tool No Length (Decimal Inch – 4 Decimals) 0.6250
