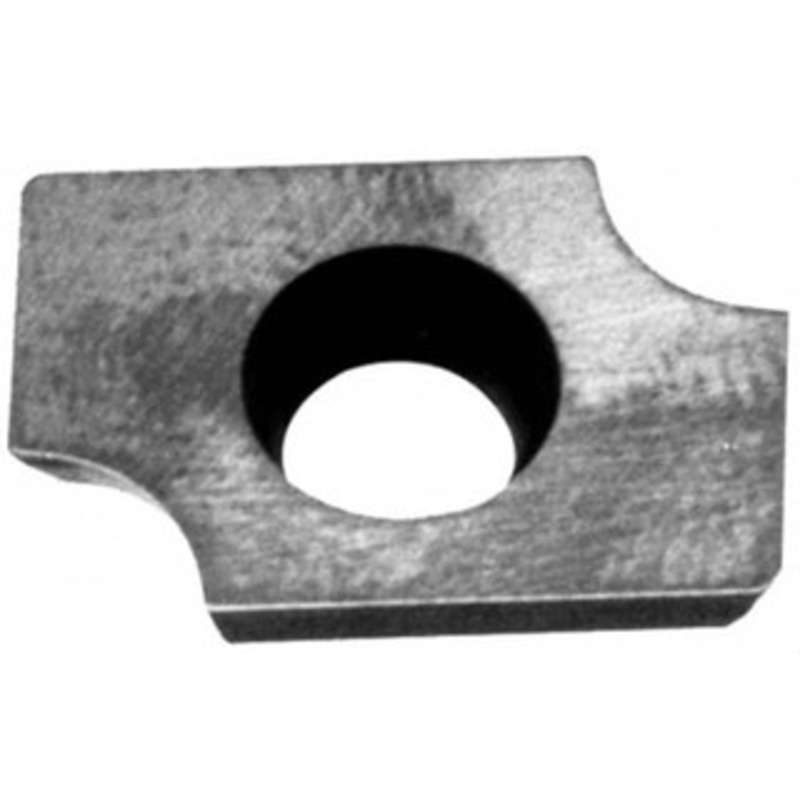

Cutting Tool Technologies CV15160T C5TIN .160RAD Carbide Milling Insert TiN Finish, 3/4 Long x 0.156 Thick x 1/2 Wide CV15160T – 00543371

Cutting Tool Technologies CV15160T C5TIN .160RAD Carbide Milling Insert TiN Finish, 3/4 Long x 0.156 Thick x 1/2 Wide CV15160T – 00543371

  • $23.28
  • $38.80
Availability: In Stock

Cutting Tool Technologies CV15160T C5TIN .160RAD Carbide Milling Insert TiN Finish, 3/4" Long x 0.156" Thick x 1/2" WideManufacturer Part #: CV15160TS/N: 00543371UNSPSC: 23291601(Minimum Order Quantity=1, Package Quantity=1)Specifications:Insert StyleCVIns

Category:
Share:
payment
Description Reviews (0)

Cutting Tool Technologies CV15160T C5TIN .160RAD Carbide Milling Insert TiN Finish, 3/4″ Long x 0.156″ Thick x 1/2″ Wide

Manufacturer Part #: CV15160T

S/N: 00543371

UNSPSC: 23291601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style CV Insert Size 15 Insert Material Solid Carbide Insert Shape Rectangle Manufacturer Grade C5 Number Of Cutting Edges 2 Thickness (Decimal Inch – 4 Decimals) 0.1560 Coating/Finish TiN Maximum Depth of Cut (Decimal Inch) 0.1600 Insert Size Code 15160 Material Grade C5 Width (Inch) 1/2 Length (Inch) 3/4 Thickness (Inch) 5/32 Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Thickness Range (Decimal Inch) 0.1500 to 0.1750 Length Range (Decimal Inch) 0.7000 to 0.9000 Insert Hand Right Hand Series CV Coating Process PVD Rake Positive Primary Workpiece Material Steel Primary Workpiece Material Code P Secondary Workpiece Material Stainless Steel Secondary Workpiece Material Code M Ansi Code CV15160T Iso Code CV15160T Standards ANSI, ISO Concave Radius (Decimal Inch) 0.1600 Rake Angle 0 Cutting Edge Style Ground Manufacturers Catalog Number CV15160T Cutter Series Compatibility CAV Chip Breaker Flat Top Material Application Steel UNSPSC Code 23291601 Insert Holding Method Screw Coating Classification PVD Single or Double Sided Insert Single Included Angle Degree 90 Width (Decimal Inch – 4 Decimals) 0.5000 Multi-Use Tool No Length (Decimal Inch – 4 Decimals) 0.7500
