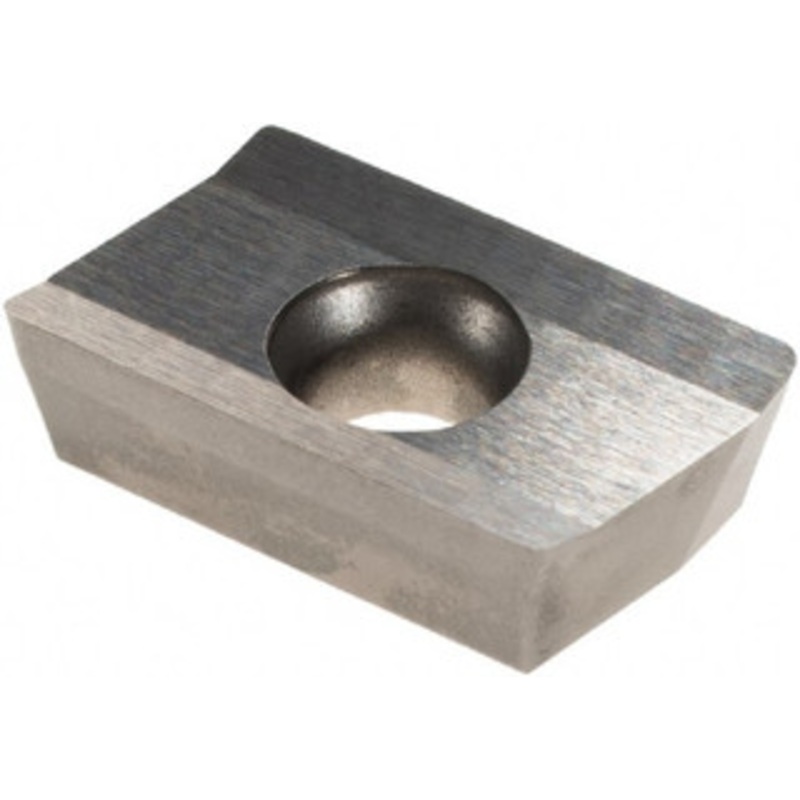

Dapra XPET160408ALU DMK25 Carbide Milling Insert Uncoated, 5/8″ Long x 3/8″ Wide
Manufacturer Part #: 29916
S/N: 63695514
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style |
XPET |
| Insert Size |
16 |
| Insert Material |
Solid Carbide |
| Insert Shape |
Square Shoulder |
| Manufacturer Grade |
DMK25 |
| Corner Radius (Decimal Inch) |
0.0310 |
| Corner Radius (mm) |
0.79 |
| Number Of Cutting Edges |
2 |
| Coating/Finish |
Bright/Uncoated |
| Relief Angle |
11.00 |
| Insert Size Code |
160408 |
| Material Grade |
C3 |
| Width (Inch) |
3/8 |
| Length (Inch) |
5/8 |
| Corner Radius (Inch) |
1/32 |
| Length Range (Decimal Inch) |
0.6000 to 0.6500 |
| Insert Hand |
Right Hand |
| Series |
XPET |
| Coating Process |
Uncoated |
| Rake |
Positive |
| Primary Workpiece Material |
Hard Material, Cast Iron, Non-Ferrous Metal |
| Primary Workpiece Material Code |
H, K, N |
| Secondary Workpiece Material |
Steel |
| Secondary Workpiece Material Code |
P |
| Ansi Code |
XPET160408-ALU-DMK25 |
| Cutting Edge Style |
Honed |
| Manufacturers Catalog Number |
XPET160408 |
| Cutter Series Compatibility |
SSEM, SSER, CC-SSER, SSSM, SSSM-MOD, BCSM, CMEM, HREM, HRSM |
| Chip Breaker |
ALU |
| Material Application |
Hard Material, Cast Iron, Non-Ferrous Metal, Steel |
| UNSPSC Code |
23291601 |
| Insert Holding Method |
Screw |
| Coating Classification |
Uncoated |
| Single or Double Sided Insert |
Single |
| Length (mm) |
15.88 |
| Width (Decimal Inch – 4 Decimals) |
0.3750 |
| Width (mm – 2 Decimals) |
9.53 |
| Multi-Use Tool |
Yes |
| Length (Decimal Inch – 4 Decimals) |
0.6250 |
