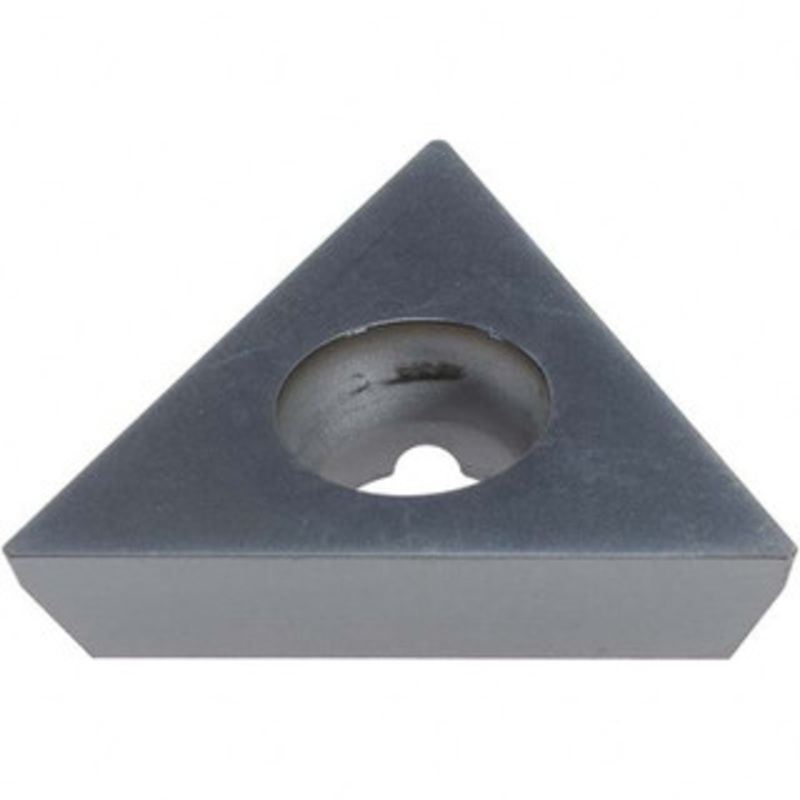

Dorian Tool TDEX-220404-XDEN Carbide Milling Insert AlCrN Finish, 22mm Long x 0.188″ Thick x 22mm Wide
Manufacturer Part #: 73310195461
S/N: 47785829
UNSPSC: 23291601
(Minimum Order Quantity=5, Package Quantity=1)
(Please order in multiples of 5)
Specifications:
| Insert Style |
TDEX |
| Insert Size |
22 |
| Insert Material |
Solid Carbide |
| Insert Shape |
Triangle |
| Manufacturer Grade |
DPP30UM |
| Corner Radius (Decimal Inch) |
0.0150 |
| Corner Radius (mm) |
0.38 |
| Thickness (Decimal Inch – 4 Decimals) |
0.1880 |
| Thickness (mm) |
4.78 |
| Coating/Finish |
Coated |
| Relief Angle |
15 |
| Insert Size Code |
220404 |
| Material Grade |
P15-P30 |
| Thickness (Inch) |
3/16 |
| Inscribed Circle (Inch) |
1/2 |
| Inscribed Circle (Decimal Inch) |
0.5000 |
| Inscribed Circle (mm) |
12.70 |
| Thickness Range (Decimal Inch) |
0.1850 to 0.2000 |
| Insert Hand |
Neutral |
| Series |
TDEX |
| Coating Process |
PVD |
| Hole Diameter (Mm) ( – 0 Decimals) |
0.22 |
| Hole Diameter (Decimal Inch) |
0.2228 |
| Rake |
Positive |
| Primary Workpiece Material |
Steel |
| Primary Workpiece Material Code |
P |
| Ansi Code |
TDEX-220404-XDEN-DPP30UM |
| Iso Code |
TDEX-220404-XDEN-DPP30UM |
| Manufacturers Catalog Number |
TDEX-220404-XDEN-DPP30UM |
| Chip Breaker |
DPP |
| Material Application |
Steel |
| Insert Holding Method |
Screw |
| Coating Classification |
PVD |
| Single or Double Sided Insert |
Single |
| Included Angle Degree |
60 |
| Length (mm) |
22.00 |
| Width (Decimal Inch – 4 Decimals) |
0.8661 |
| Width (mm – 2 Decimals) |
22.00 |
| Length (Decimal Inch – 4 Decimals) |
0.8661 |
