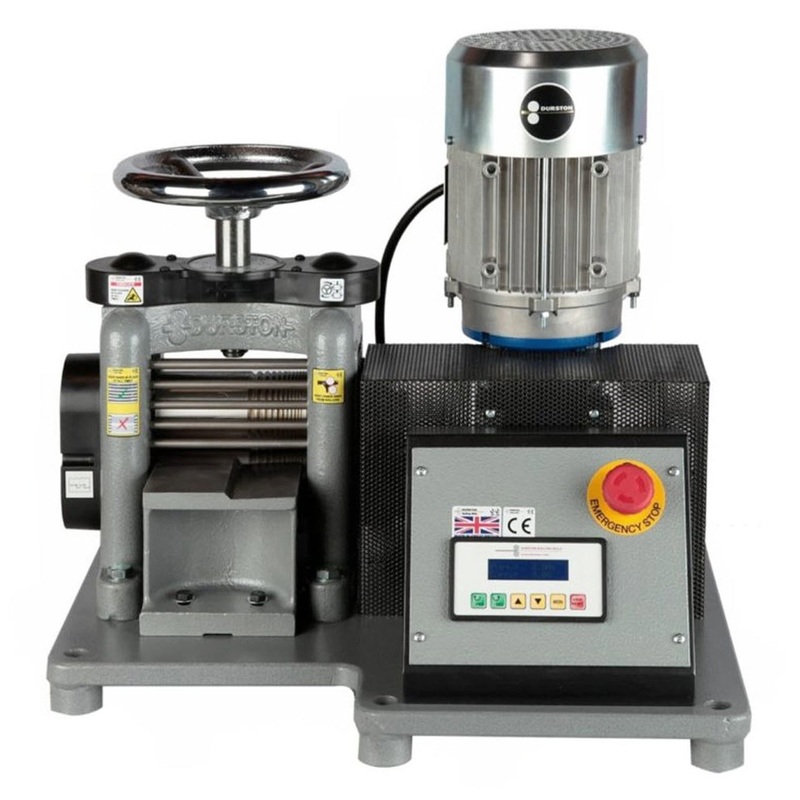

Durston 130mm TUI-Powered Combination Rolling Mill C130

Rolling mills are designed to gradually reduce metal stock thicknesses to achieve the exact gauge size for your work. Durston Rolling Mills are compact, yet have everything you need to form metals. The TUI-Powered Rolling Mill range creates the same quality and output you expect from Durston Tools powered mills but at a lower cost. Where it matters the same components are used from the Core DRM range, such as the actual mills, rolls and casting gears. The cost savings are made by replacing the steel gearbox with an aluminum one, replacing the cast iron plate and main guard with steel and by having one central emergency stop button. As with all Durston Tools powered mills, the TUI C130 has variable speeds, as standard, in forward, and reverse, plus two sets of extension rollers securely stored behind black guards. The rolls are combination rolls including 11 square wire grooves ranging from 8 mm to 1 mm, and a broad, flat rolling surface to create a perfect finish each and every time. The 1.1KW motor provides consistent power through the lifetime of the mill. Digitally controlled variable speeds from 5 to 20 RPM allows complete control over each roll and the side extensions provide four half rounds of 4, 3, 2, and 1.5 mm for additional versatility. The same standards of production and manufacturing are applied to the TUI range as you have come to expect from Durston Tools range. Freight shipping required, please contact us at (855) 298-7627 for pricing.

Additional Details & Information:

Dimensions: 830 mm long x 390 mm wide x 540 mm high

Number of Grooves: 11

Roller Type: Combination

Side Extensions: 4, 3, 2, & 1.5 mm

Range: TUI

Roller Measurements: 65 mm in diameter x 130 mm long

Maximum Sheet Thickness: 6 mm

Maximum Wire Capacity: 8 mm
