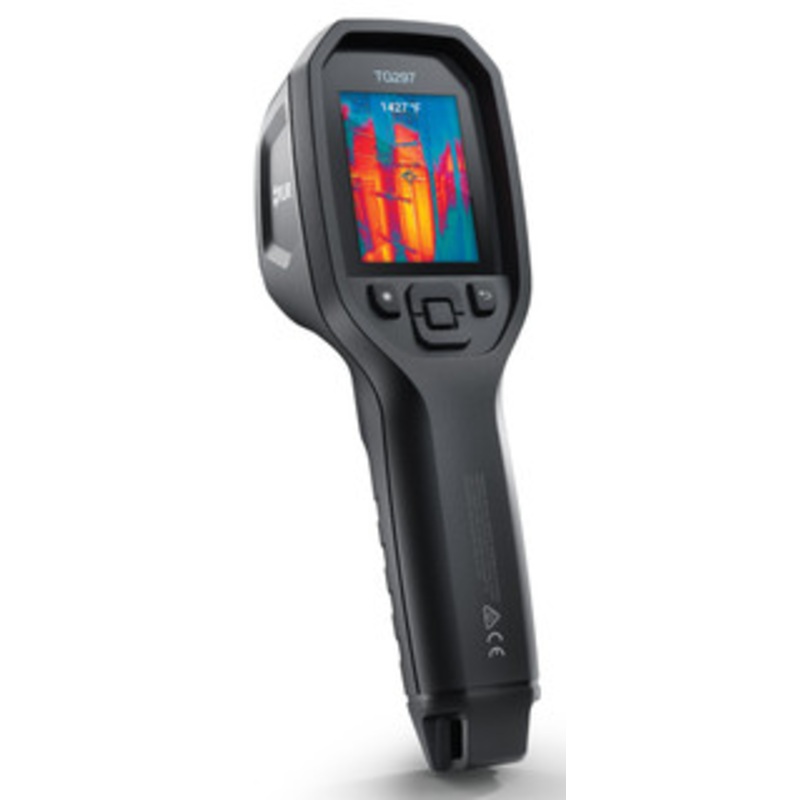

FLIR TG297 Automotive Diagnostic Thermal Camera

The FLIR TG297 is a one-of-a-kind industrial diagnostic tool that combines accurate temperature measurement with the ability to image up to 1030C (1886F). Now you can both see and measure the source of common issues involving electrical and mechanical systems, diagnose breakdowns, and verify manufacturing processes.

Patented FLIR MSX (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images. The TG297 is ideal for high-temperature industrial uses such as measuring the heat of glass furnaces, kilns, and forges as well as manufacturing applications, allowing you to accurately target potential faults, troubleshoot repairs, and monitor processes.

Record images to assure your team that machinery and systems are functioning safely and at peak efficiency. With a simple user interface, Bluetooth connectivity, storage for up to 50,000 images, and rechargeable Li-ion battery, the FLIR TG297 is ready to go out of the box.

Designed for Affordable Industrial High-Temp Imaging

Identify Problems Quickly:

• Outfit your toolbox with this combination non-contact temperature measurement and thermal imaging camera
• Experience the difference you can make with a true 160 120 IR pixel imager (19,200 pixels)
• High-temperature filter allows camera to measure and image temperatures up to 1030C (1886F)
• Work from a safe distance while scanning high temperature objects thanks to the 30:1 spot ratio
• Identify the exact area that youre measuring using the bullseye laser pointer

Produce Crisp Thermal Images:

• See the detail needed to troubleshoot faults and gauge their severity
• Diagnose problems faster with FLIR-patented MSX image enhancement
• Display and capture thermal or visual images with temperature readings
• Compare before-and-after stored images to demonstrate the problem and the repair
• View thermal images in your preferred color palette on the bright 2.4-inch color display

Work with Confidence in Rugged Environments:

• Take the TG297 anywhere thanks to its portable design and protective IP54 enclosure
• Work from a safe distance to measure high-temperature objects (e.g. a glass furnace) with a portable tool protected by an IP54 enclosure
• Work safely and worry-free knowing that the thermal imager can withstand a 2-meter drop
• Peer into the darkness and hard-to-reach areas with the bright LED flashlight
• Find this compact, durable imager in a crowded tool bag easily, thanks to the ergonomic handle design
• Rely on the security of the world-class FLIR 2-10 warranty

Specifications:

OVERVIEW Accuracy 1.5C (2.7F) for temperatures 50C to 100C (122F to 212F);
up to 3C (5.4F) for -25C to 50C (-13F to 122F)
and 100C to 1030C (212F to 1886F) Detector Type Focal plane array (FPA), uncooled microbolometer Field of view (FOV) 57 x 44 IR Resolution 160 x 120 pixels Laser Class 1 laser indicates the temperature measurement area; button-activated Object Temperature Range -25C to 1030C (-13F to 1886F) Thermal Sensitivity/NETD <70 mK Warranty FLIR 2-10 warranty Built-in Illuminator LED 100 lumens, 6500 K flashlight FLIR Tools Compatible COMPLIANCE & CERTIFICATIONS Certifications CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan CONNECTIONS & COMMUNICATIONS Interface USB 2.0, Bluetooth Storage Media eMMC 4 GB USB USB Type-C: data transfer/power USB – Standard USB 2.0 High Speed ENVIRONMENTAL Drop test Designed for 2 m (6.6 ft) EMC EN 61000-6-3
EN 61000-6-2
FCC 47 CFR Part 15 Class B Emissivity Correction Yes: 4 preset levels with custom adjustment of 0.10.99 Encapsulation IP 54 (IEC60529) Humidity (Operating and Storage) 0-90% RH (0-37C (32-98.6F))
0-65% RH (37-45C (98.6-113F))
0-45% RH (45-55C (113-131F)) Operating Temperature Range -10C to 45C (14F to 113F) Radio Spectrum ETSI EN 300 328
FCC Part 15.249
RSS-247 Issue 2
EN 301 489-1:2011
EN 301 489-17:2009 Safety CE/CB/EN61010/UL Shock 25 g (IEC 60068-2-27) Storage Temperature Range -30C to 55C (-22F to 131F) Tripod Mounting 1/4 in.-20 on handle bottom Vibration 2 g (IEC 60068-2-6) IMAGING & OPTICAL Built-in Digital Camera Yes Color palettes Iron, Rainbow, White hot, Black hot, Arctic, Lava Detector Pitch 12 m Digital image enhancement Yes Focus Focus free Gallery Yes Image Adjustment Automatic Image Frequency 8.7 Hz Image Modes MSX (Multi Spectral Dynamic Imaging)
Visual with temperature reading Minimum Focus Distance 0.3 m (0.98 ft) Minimum Measurement Distance 0.26 m (0.85 ft) Spectral Range 7.5 – 14 m Digital Camera Resolution/FOV 2 MP (1600 x 1200 pixels), 71 x 56 FOV MEASUREMENT & ANALYSIS Center spot Yes IR Temperature Resolution 0.1C (0.2F) IR Thermometer Measurement Acquisition Continuous scanning Languages Czech, Danish, Dutch, English, Finnish, French, German, Greek,
Hungarian, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese, Russian, simplified Chinese, Spanish, Swedish,
traditional Chinese, Turkish. Set-up Commands Local adaptation of units, language, date, and time formats
Screen brightness (high, medium, low)
Gallery, deletion of images Spot Meter Center spot on/off METER DATA Camera size (L x W x H) 210 x 64 x 81 mm (8.3 x 2.5 x 3.2 in) Camera weight incl battery 0.394 kg (13.9 oz) Cover Glass Material Optical grade silicon Display 320 x 240 pixel, 2.4 in color LCD POWER Battery operating time 5 hours continuous scanning, 4.5 hours with laser on Battery Type Rechargeable Li ion battery Battery voltage 3.7 V Charging system Battery is charged inside the camera Charging Temperature 0C to 45C (32F to 113F) Charging Time 4 hours to 90%, 6 hours to 100% Power Management Adjustable: off, 5 min., 15 min., 30 min. Battery charge life 30 days minimum SHIPPING INFORMATION Includes TG297, printed documentation, wrist strap lanyard,
USB A to USB C cable, carry pouch STORAGE MEDIA Image Storage Capacity 4 GB for storage of up to 50,000 pictures Memory Type Internal Saved image format JPEG
