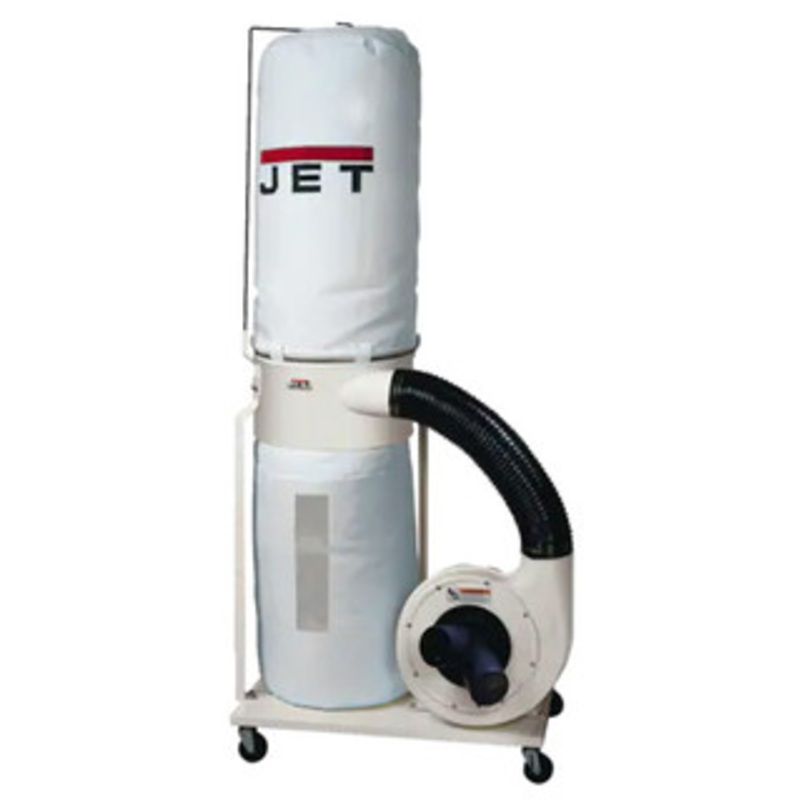

JET Vortex Cone DC-1100VX-5M Dust Collector, 1.5HP 1PH 115/230V, 5-Micron Bag Filter Kit – 708658K

JET’s exclusive Vortex Cone technology has changed dust collection forever. Bringing two-stage dust collection performance to a single stage unit, your shop stays cleaner, chips stay out of the filter, and dust stays out of your lungs.

The JET DC-1100VX-5M features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The filter bag captures up to 98% of 5-micron particles. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

Features:

• Vortex Cone improves chip separation and collector bag packing efficiency
• Eliminates premature filter clogging for sustained performance
• Single-stage design for economical and quiet operation
• Industrial controls designed for years of trouble-free use
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Includes four casters for maneuverability and total portability

Specifications:

Number of Air Inlets 1 at 6″, 2 at 4″ 1-Hose Connection Diameter (In.) 6″ 2-Hoses Connection Diameter (In.) 4″ Air Flow @ 4″ (CFM) 1100 Style (Type) Bag Velocity @ 4″ (FPM) 12,571 Static Pressure (Wc.) 10-1/2 Efficiency (Micron) 5 Filter Bag/Canister Length (In.) 32″ Collection Bag Capacity (Cu. Ft.) 5-3/10 Collection Bag Length (In.) 30″ Bag Diameter (In.) 20″ Impeller Material Steel Impeller Diameter (In.) 11 Sound Rating (Db.) 70 – 80 Motor Power (HP) 1-1/2 Motor Phase (PH) 1 Motor Voltage (V.) 115/230 Prewired Voltage (V.) 115 Motor Amps 11/5.5

* FOR DUST COLLECTOR ACCESSORIES: CLICK HERE

See all JET Vortex Cone DC-1100VX and DC-1200VX Dust Collectors
