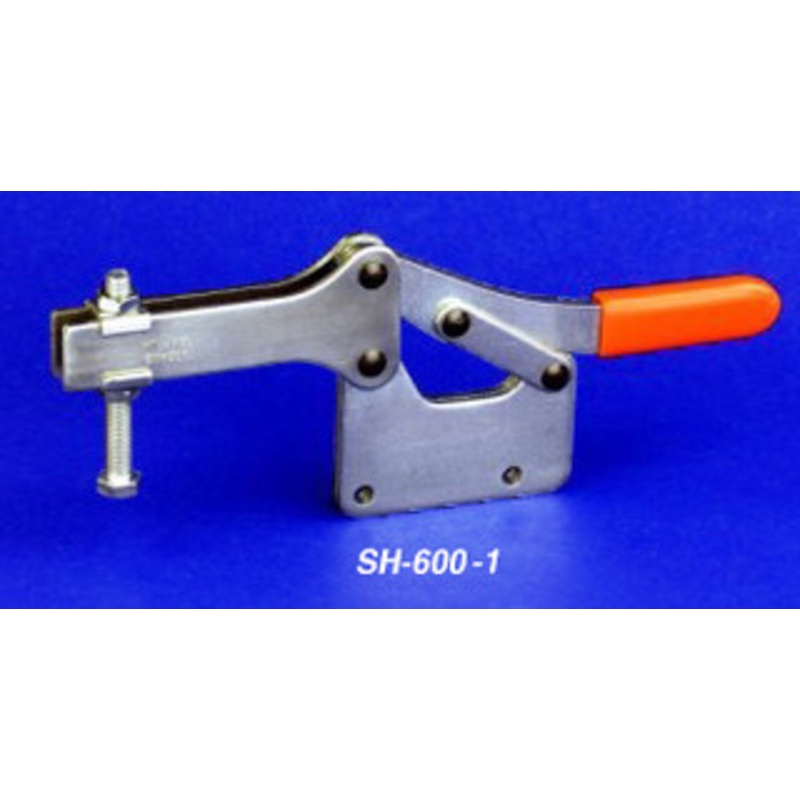

Knu-Vise Horizontal Hold Down Clamp 3.34″ Throat Depth – SH-600-1

The Hold-Down action is the most common type of toggle clamp. They are available with handle that are either vertical or horizontal when the clamp is closed. They are used to apply a downward clamping force.

• Open Toggle Bar
• Weight: 1.18 lb.
• Holding Capacity: 600 lbs 2669 N
• Holding Capacity 1 in Front of Base: 1600 lbs 7117 N
• Maximum Clamping Thickness: 2.06 in 52.4 mm
• Throat Depth: 3.34 in 84.9 mm
• Included 1:Spindle Assembly (N-470005)
