Kurt Schenke VB 5 Axis Clamping System, 100 mm (4″)
740-01-003-61

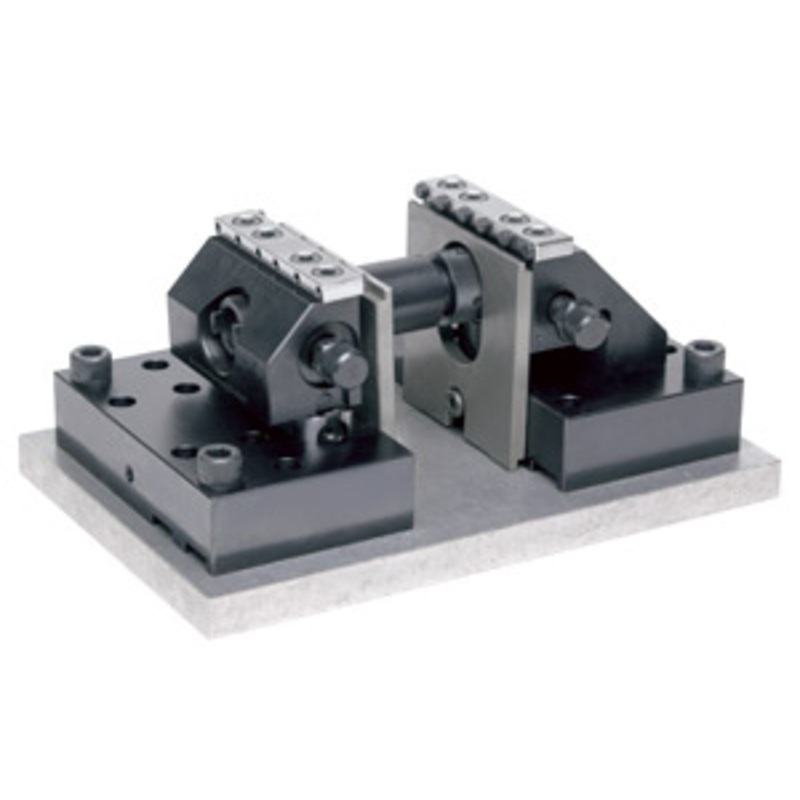

The Kurt VB 100 mm 5 Axis Schenke Clamping System gets your work piece up and clear of the machining head. This short version allows for lower profile machining and still has the head clearance required on 5 Axis machines.

Features:

• Clamping height above machine table: 100 mm* (3.937″)
• Extended height +25 mm: 125 mm* (4.921″)
• Extended height +50 mm: 150 mm* (5.906″)
• Jaw width: 100 mm (3.937″)
• Clamping with with standard set: 20-236 mm (0.787″-9.291″)
• Clamping depth: 8 mm (0.315″)

* The clamping height above the machine table can be raised by using the mounting block raise:

# 740-04-025-00 – 25 mm raise or
# 740-04-050-00 – 50 mm raise

Dimensional Data:

Comment Designation A 1 piece Fixed jaw B 1 piece Moving jaw C 2 pieces Clamping jaw for pins D 1 piece Tension spindle w/ driving sleeve and spindle nut E L 120 mm (4.724″) Ext. shaft w/ cap nut E L 60 mm (2.362″) Ext. shaft w/ cap nut F 12 pieces Pins 0.5 mm G pair Support blades H pair Mounting blocks

Clamping Force Lbs.

kN Clamping Force Lbs. 5-40 1124-8992
