Description

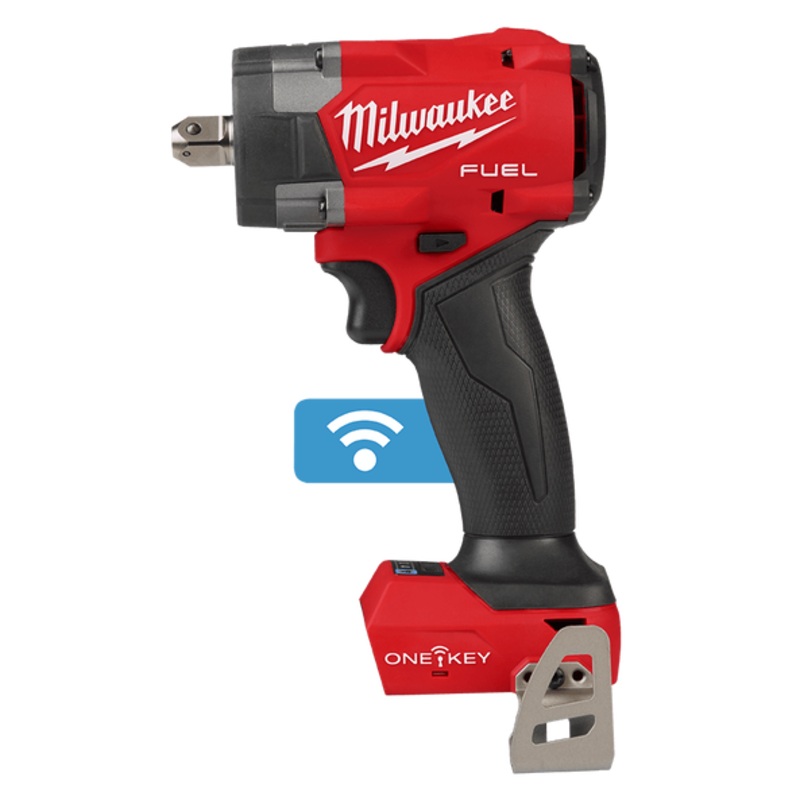

The M18 FUEL Controlled Torque Impact Wrench with TORQUE-SENSE provides maximum repeatable torque in a pistol grip impact wrench. TORQUE-SENSE torque control overcomes common variances seen on the jobsite, maintaining target torque. This performance is enabled by new to world sensors designed in-house by Milwaukee Tool that feed sophisticated machine learning algorithms. Every trigger pull is recorded, and data can be downloaded for customizable reporting to ensure confident installation. This cordless impact wrench is ideal for utility-scale solar projects, where eliminating the 2-step method on the jobsite can deliver maximum installation speed. Milwaukee offers maximum performance and application speed with FUEL technology, enabled by POWERSTATE brushless motors, REDLINK PLUS tool intelligence, and REDLITHIUM battery technology.

Features

TORQUE-SENSE torque control delivers TORQUE REPEATABILITY by utilizing proprietary sensors and machine learning developed algorithms to overcome common jobsite variability.

Simplified setup process via ONE-KEY eliminates guess-and-check process to deliver target torque.

Tool output data is stored and is available for download to create customizable tool reports.

TORQUE-SENSE error reduction feature set includes low battery shutoff, double-hit prevention, early trigger release detection, F/R direction lock, programmable LED colors, and torque recheck timer.

Reinforced M18 battery connection providing improved durability and battery retention over life.

A Compact and ergonomic footprint with lightweight design allowing for easier handling, reducing daily fatigue and improving working in tight application spaces.

User feedback LED light shows OK/NOT OK installation.

Enabled with machine learning to maintain +/-15% repeatability by adapting to; battery charge level, battery type, jobsite temperature, different torque ranges, tool age, and inconsistent torque during snug up.

Repeat Torque Range: 68-203Nm (50-150 ft.lb).

Supplied with a 12-Month out-of-box manufacturers torque accuracy certification.

Save completed torque mode training run-downs into your ONE-KEY library to broadcast to a fleet of tools with identical model numbers.

Over-the-Air update capable for future mode improvements.Specifications

PlatformM18 FUEL / ONE-KEY

Voltage18V

Anvil Type1/2″ Square Drive Pin Detent

Nut Busting Torque298 Nm Peak

Fastening Torque298 Nm Peak

IPM0 – 3,500

RPM0 – 2,325

Length140mm

Weight1.3 kg (Excluding Battery)

Warranty1 Year

Repeat Torque Range68 – 203 Nm

Manufacturers Torque Accuracy Certificate IncludedYes
