Mitee-Bite Dyna-Force Clamp -28324

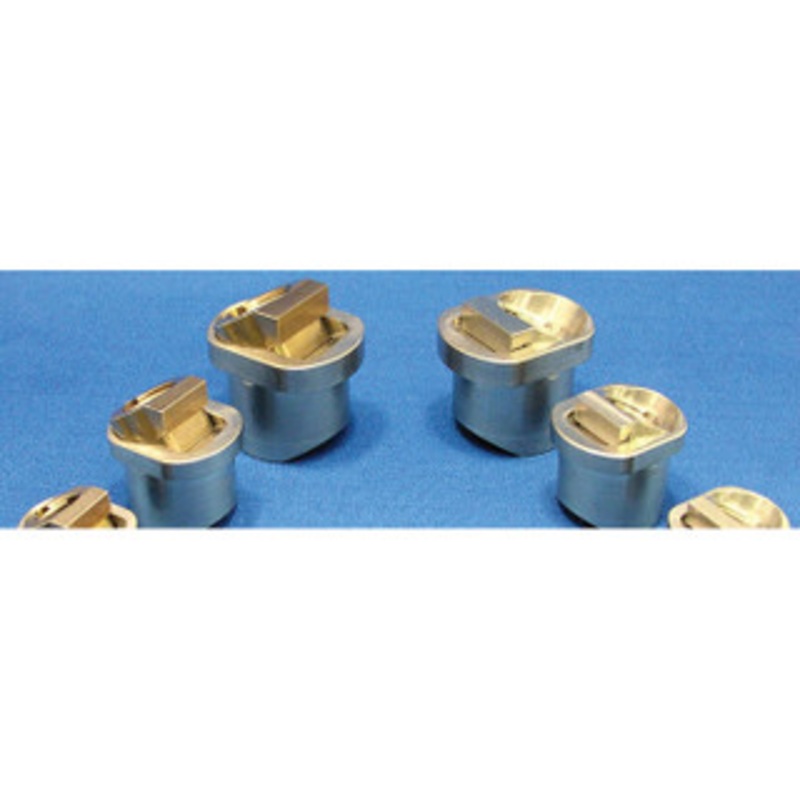

Dyna-Force Clamps

The majority of the Dyna-Force clamp is below the surface of the fixture which provides excellent clamp support and makes for a very low profile. The clamp jaw slides on an angle for positive downforce.

The clamp jaw is available with smooth or serrated faces.

The support surface of the Dyna-Force clamp can be installed flush with the fixture plate or raised to hold the workpiece off the fixture, enabling drill-through.

Features:

• Incredible Clamping and Hold Down Power
• Low Profile, Compact Design
• 17-4 PH Stainless Steel
• Smooth or Serrated
• Stainless steel screws and retaining rings are available for EDM applications

PATENT NO. 5964458

Dyna-Force Installation:

• Bore of the hole “L” distance from edge of workpiece
• Drill and tap “H” to mount clamp in pocket
• Machine counter bore if recessing clamp into fixture
• Provide a back stop to locate the part

NOTES:

• “N*” To have rest pad flush with fixture, use the dimension provided. To have the rest pad above the fixture surface, reduce the depth accordingly.
• For dimensions I and J, use a tolerance of +.1/-0mm. For dimension L and O, use +.1/-.1mm.

Specifications – Metric:

Part No. 28324 Clamp Jaw & Hardness Smooth 34RC A* 30 B 37.9 C 29 D 29.9 E 7 F 20 G – Min 4.5 G – Opt. 7.5 G – Max 10.75 H M8 or 5/16-18 I 38 J 30 K 8 L 7.05 M 7.5 N 7 O 30 Clamp Travel 3.8 Drive Screw M10x18mm Key Size 8mm Max Torque 35.3 (Ft/Lbs), 41.9 (N.m) Holding Force 3,200 (Lbs), 14234 (N.) Replacement Insert** 28488 (smooth)

Smooth jaw only will have relief cut
* Body diameter
** Includes screw and retaining ring
