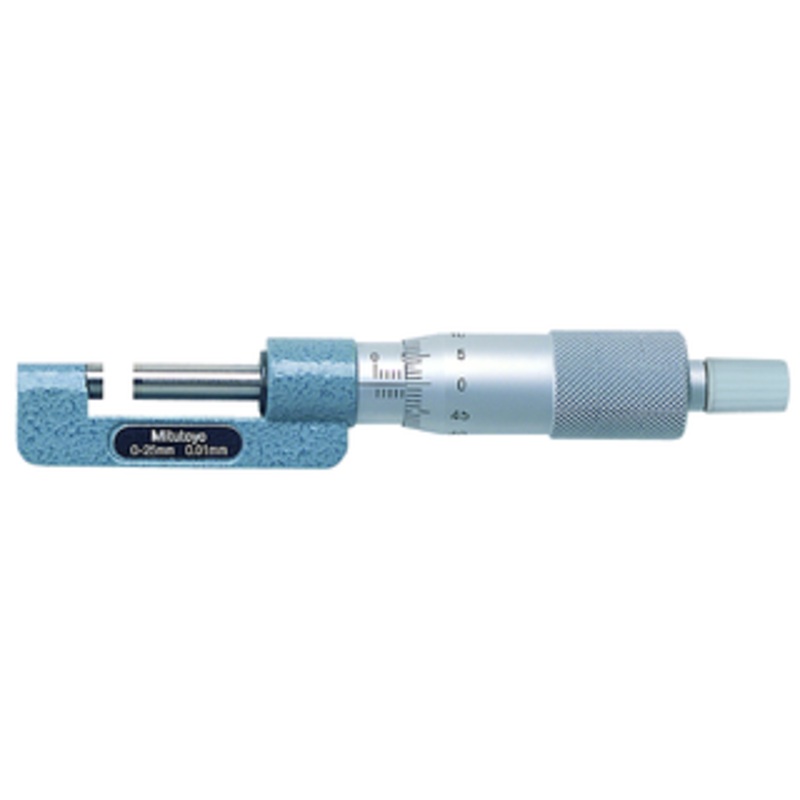

Mitutoyo Hub Micrometers, Series 147

Features

• Measures hub thickness and shoulders inside a bore.

• With ratchet stop for constant force.

• With a standard bar except for 0 – 1 / 0 – 25mm model.

• Supplied in fitted plastic case.

Technical Data

• Accuracy: Refer to the list of specifications

• Graduation: 0.01mm / .001

• Flatness: 0.6m / .000024

• Parallelism:
  (2+R/100)m, R=max. range (mm)
  [.00008 + .00004 (L/4)], L = Max. range (inch)

• Measuring faces: Carbide tipped

For more details and Specifications on each item, copy the Item Number below into the search bar at the top of the page.
