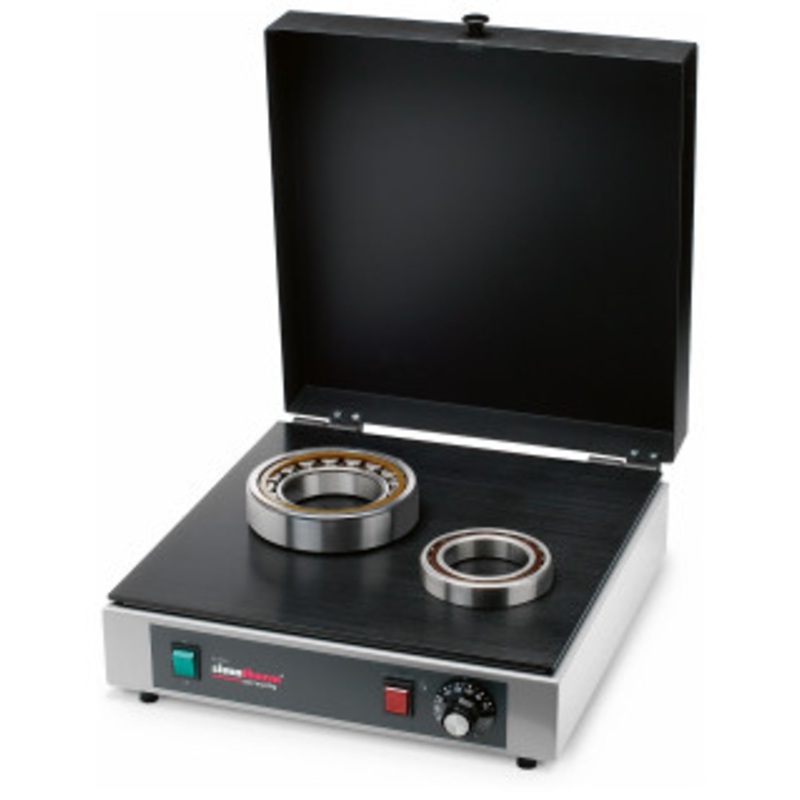

Simatec Simatherm Electric Hot Plate HPL, Large

Electric hot plate with thermostat controlled bearing heating

The electric heating plate HPS (small) and HPL (large) was especially designed for the heating of small work pieces.

The temperature of the heating plate can be adjusted by a turning knob in a range of 122-392F (50-200C).

Features:

• HPL for workpieces weighing up to 10kg (22 lb.)
• Plate surface (WxD) for HPL: 380 x 380mm (15 x 15 in)
• Also included: 1 pair of protective gloves
• Available for voltages of 100-115 and 230V
• Control range from 50 to 200C (122 to 392F)

About Simatherm Induction Heaters:

The best way to avoid unwanted stresses when assembling interference-fit parts is to heat the outer part just enough to produce a temporary clearance. Simatherm induction heaters allow this to be done precisely, evenly, quickly and efficiently. Other methods of heating are slower, less controlled and can cause more harm than good to bearings.

Advantages:

• Precise, even, quick heating
• There is no risk of damage (from excessive mechanical stress, open flames, dirty oil baths, excessively hot ovens and plates)
• Automatic demagnetization
• User friendly
• Increased operational safety
• Selectable power reduction for heating up smaller parts

Click to View More Information

Specifications:

Type Hot Plate HPL Description Heaters for small workpieces Designation HPL 200/230 V (Art. 110.1803
HPL 200/110 V (Art. 110.1804) Voltage 220-240 V
100-120 V Frequency 50-60 Hz
50-60 Hz max. Amperage 10 A
20 A Power 2000 W
2000 W Max. weight of rolling bearing 10kg (22 lbs.) Temperature range 50-200C (122-392F) Accuracy (electronic) 5 C (41F) Maximum temperature (approx.) 200 C (392F) Size of operating area (W x H) 380 x 380mm (15″ x 15″) Dimensions (L x W x H) 390 x 390 x 170 mm (15.4″ x 7.5″ x 5.9″) Overall weight 10 kg (22 lbs.)
