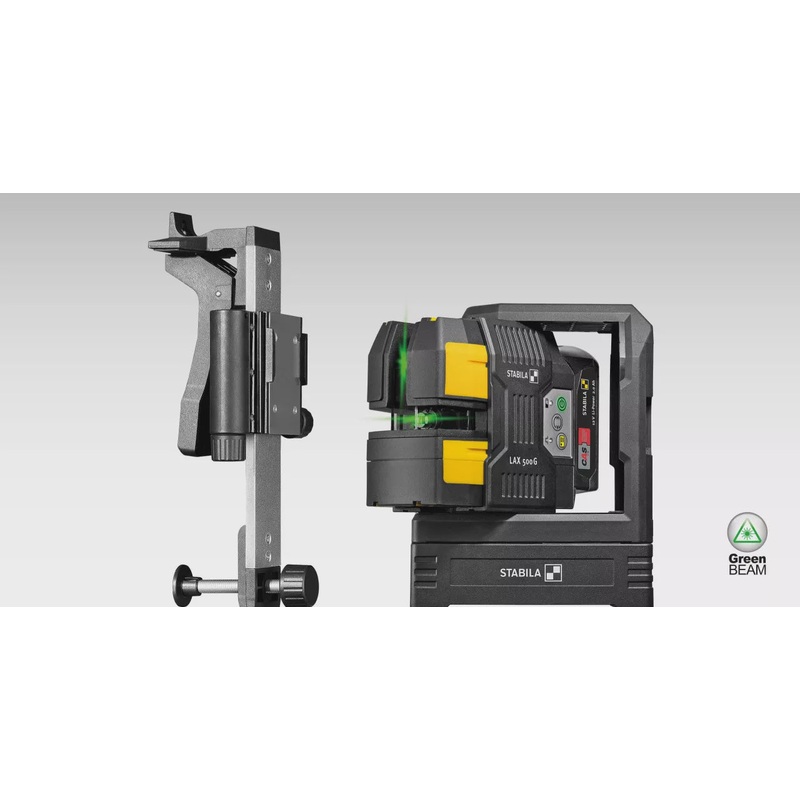

Discover the powerful LAX500G, the cross-line laser with plumb dots and modern rechargeable battery technology. Benefit from the innovative technology of this professional laser: GREENBEAM technology means razor-sharp lines that enable you to transfer heights or align axes at a distance of up to 130ft/40m. In manual mode, the laser can be positioned at any desired angle and thanks to the included accessories, is ideal for a range of applications. The laser optics are optimally protected by the proctective housing. STABILA simply work efficiently!

Features

• 12V CAS rechargeable battery-operated, self-leveling cross-line laser with plumb dots for working efficiently on the horizontal and vertical planes.
• GREENBEAM technology: direct work on sharp and perfectly visible lines up to 130ft/40m away.
• High-performance diodes: Vertical line covers almost the entire room.
• Manual mode: Positioning the laser at any angle with a locked pendulum mechanism.
• Switchable pulse-modulated lines: compatible for working with line receivers (available as an option).
• Long operating time: 12VLI-POWER 2.0Ah CAS rechargeable battery for up to 20hours of use.
• Short charging times: quick recharging in max. 45minutes.
• Protective housing for laser optics: Shock-absorbing soft grip exterior, rotatable housing and protective sliders prevent damage.
• Removeable laser base allows the ability to work over bottom plate or base track.
• Flexible positioning: 1/4 thread, rare-earth magnets and wall bracket.
• Stable carrying case.
• Protection rating IP 54 (without rechargeable battery).

Applications

• In drywall construction: Suspend ceilings together with the wall bracket, transfer layout from the floor to the ceiling, align profile rails, install partitions.
• For tiling: Lay out the tiling, align and lay floor and wall tiles.
• In electrical installation work: Mark switches and sockets, align cable ducts horizontally and vertically, align and install lighting.
• For installation work: Align pipe clamps horizontally and vertically, route cables and heating pipes, install radiators and sanitary facilities.
• For carpentry and joining work: Assemble kitchen cabinets, align worktops.
• In window construction: Level window heights.

Technical data

Laser class2Output< 1 mWLaser wavelength510 - 530 nmSelf-levelling range +/-5Levelling accuracy +/-1/8 in @ 30 ftLaser beam accuracy (up) +/-1/8 in @ 30 ftLaser beam accuracy (down) +/-1/8 in @ 30 ftMeasuring range of visible line130 ftOperating life20 hProtection classIP 54Tripod connection1/4"
