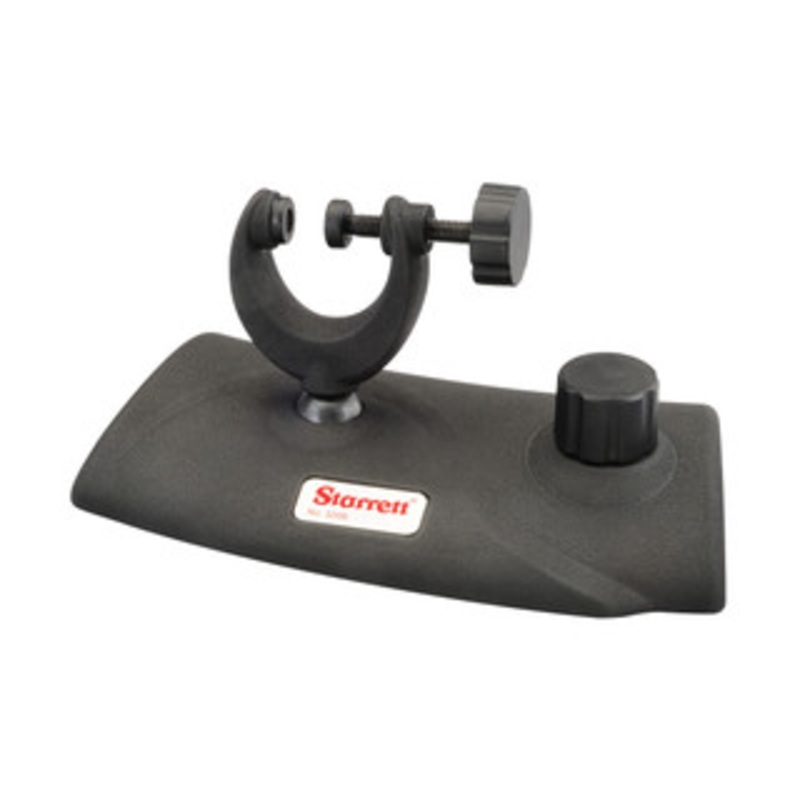

Starrett 3206 Outside Micrometer Stand, EDP 68917 – 3206

Outside Micrometer Stand with Ball Joint Construction and Positive Lock on the Base, Accommodates 1/2″ and 1″ Outside Micrometers

Stand converts outside micrometers to a sturdy bench gage for batch inspection of small parts. Useful as a handy bench vise or assembly fixture.

Features

• Gripping surfaces are two nylon pads which are replaceable

• Ball joint construction allows head to be positioned as much as 30 off perpendicular in any direction

• Positive lock on the base


Specifications

• 16mm and 5/8″ capacity

• 45 degree inclination

• Base dimension is 6-3/8″ long x 3-1/2″ wide x 3/4″ thick (162mm long x 89mm wide x 19mm thick)

• Tilting head clamping capability is 3/4″ (19mm) thick x 1″ (25mm) throat depth
• Accommodates all Starrett 1/2″ (13mm) and 1″ (25mm) outside micrometers, 2 and 2A 2″ outside micrometers and 210, 220, 430, 483, 485 and 569 Special Purpose Outside Micrometers
