Starrett Dial Test Indicator with Dovetail Mount, EDP 12636 – 3908AC

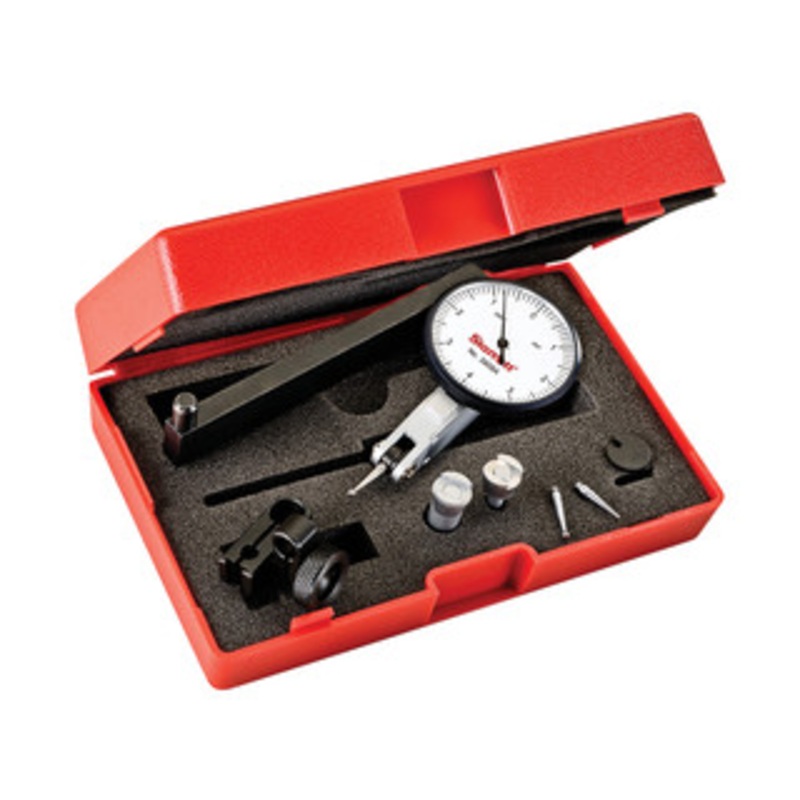

The Starrett 3908 precise, high quality test indicator offers a full complement of standard features. Indicator includes two contact points, two dovetail clamps, swivel post holder, tool post holder, contact wrench and case.

Features

• Three dovetail positioning mounts work with most existing test indicator accessories

• Precision gear-driven design with smooth, jeweled movement

• Contact point reverses automatically, always maintaining clockwise hand rotation

• Contacts are frictionally adjustable and replaceable

• Meets or exceeds ANSI/ASME accuracy specifications

• High contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading indicators

• Narrow body for in reach ability

• Satin chrome finish for durability


Specifications

• Range (in): .008″

• Graduations (in): .0001″

• Dial Reading: 0-4-0

• Attachments: .078″ & .156″ contact points, 3/8″ & 5/32″ dovetail clamps, .156″ swivel post holder, tool post holder, contact wrench & case

• Dial Color: White 1-9/16″ Diameter


See all Starrett 3808, 3809, 3908 and 3909 Dial Test Indicators
