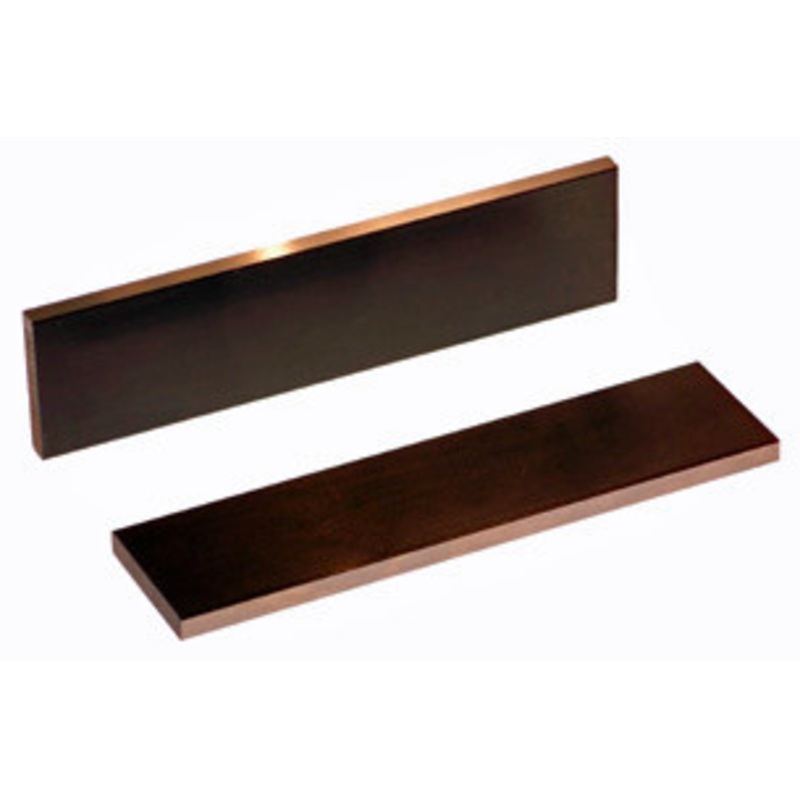

Suburban Tools Matched Pairs of 2-Way Steel Parallels – TWP-007

• Made of tool steel, hardened to Rc 58-60 and ground in matched pairs on two sides.
• Provides an economical alternative to 4-way ground parallels, when only two parallel sides are required.
• Size tolerance of the ground height is 0.001″, while being held to a total of 0.0001″ between the pieces of a matched pair.
• Total parallelism over the 6″ length is 0.0001″.
• Made in the U.S.A.

MODEL # LENGTH WIDTH GROUND HEIGHT WT (#) TWP-001 6″ 1/4″ 3/8″ 1 TWP-002 6″ 1/4″ 7/16″ 1 TWP-003 6″ 1/4″ 1/2″ 1 TWP-004 6″ 1/4″ 9/16″ 1 TWP-005 6″ 1/4″ 5/8″ 1 TWP-006 6″ 1/4″ 11/16″ 1 TWP-007 6″ 1/4″ 3/4″ 1 TWP-008 6″ 1/4″ 13/16″ 1 TWP-009 6″ 1/4″ 7/8″ 1 TWP-010 6″ 1/4″ 15/16″ 2 TWP-011 6″ 1/4″ 1″ 2 TWP-012 6″ 1/4″ 1-1/16″ 2 TWP-013 6″ 1/4″ 1-1/8″ 2 TWP-014 6″ 1/4″ 1-3/16″ 2 TWP-015 6″ 1/4″ 1-1/4″ 2 TWP-016 6″ 1/4″ 1-5/16″ 2 TWP-017 6″ 1/4″ 1-3/8″ 2 TWP-018 6″ 1/4″ 1-7/16″ 2 TWP-019 6″ 1/4″ 1-1/2″ 2 TWP-020 6″ 1/4″ 1-9/16″ 2 TWP-021 6″ 1/4″ 1-5/8″ 2 TWP-022 6″ 1/4″ 1-11/16″ 2 TWP-023 6″ 1/4″ 1-3/4″ 2 TWP-024 6″ 1/4″ 1-13/16″ 2 TWP-025 6″ 1/4″ 1-7/8″ 2 TWP-026 6″ 1/4″ 1-15/16″ 2 TWP-027 6″ 1/4″ 2″ 2
