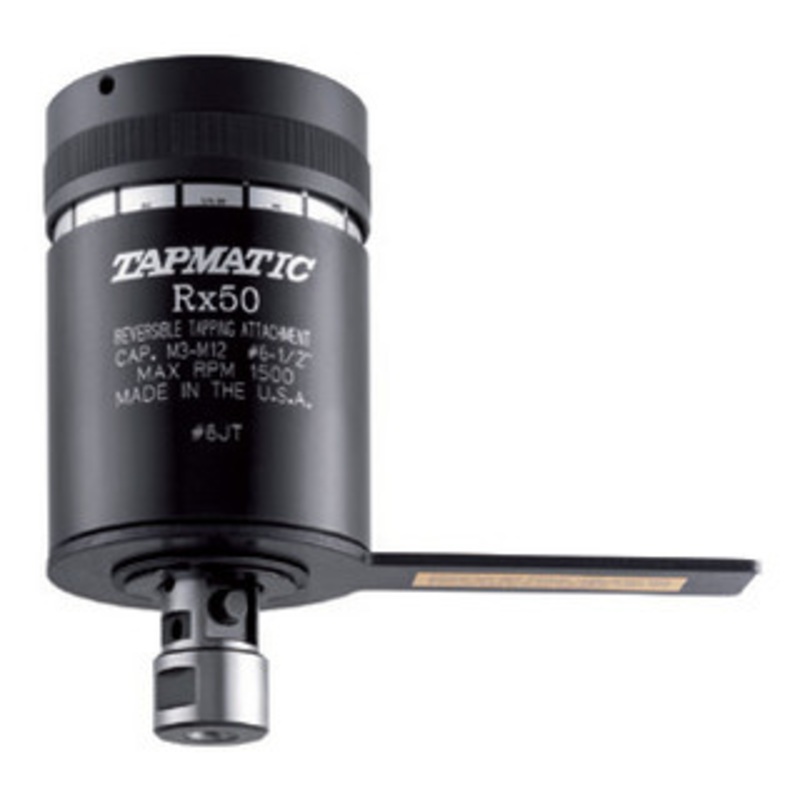

Tapmatic RX Series Self-Reversing Tapping Attachments

High production self-reversing tapping attachments with high-speed reverse and pre-selective torque control.

Features:

• For hard to machine material and high torque applications like roll form tapping
• Less tap breakage due to pre-selective torque control
• Reduced cycle time through increased 1.75 :1 reverse speed
• Easy handling, compact design
• Easy adaptation with multiple interchangeable arbors

Dimensions:

Model D mm d mm Self-feed mm T Weight kg RX30 53 19 3 0.7 RX50 76 27 5 1.8 RX70 88 36 7 3

Specifications:

Model Item Number Capacity (Steel) Collets Rubber Flex Max. RPM Mounts S L Taper Mounts Thread Mounts RX30 013006 M1.4 – M7
#0 – 1/4″

21600
21700

2000 JT6 116 013016 B16 013033 JT33 013037 3/8″-24 013050 1/2″-20 Model Item Number Capacity (Steel) Collets Rubber Flex Max. RPM Mounts S L Taper Mounts Thread Mounts RX50 015006 M3 – M12
#6 – 1/2″

22100
22200

1500 JT6 157 015016 B16 015033 JT33 015050 1/2″-20 Model Item Number Capacity (Steel) Collets Rubber Flex Max. RPM Mounts S L Taper Mounts Thread Mounts RX70 017003 M5 – M18
#10 – 3/4″

24100
24500

1200 JT3 182 017050 1/2″-20 017087 7/8″-20
