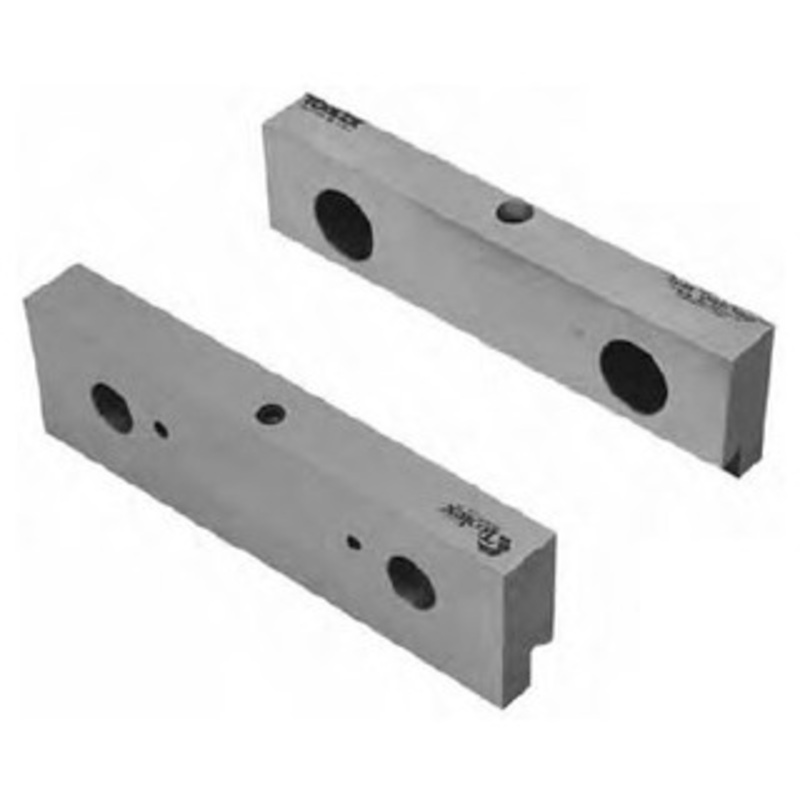

TE-CO QuickChange Master Jaws, 0.735″ Width – QMJ6000

Features:

• For ReLock applications, QuickChange master jaws mount to the SnapLock carrier jaws and accept all QuickChange jaw components.
• Install QuickChange master jaws to Snaplock carrier jaws on vise for squareness.
• Accessories slide into position via a dovetail slot.
• Comes as a two piece set.
• Before mounting QuickChange Master Jaws, thoroughly inspect, clean and remove any burrs or chips from mounting surface.
• Please use the image viewer to see the product line drawing.

Specifications:

Vise Size 6 in Total Length (A) 6.120 in Total Height (B) 1.735 in Total Width C 0.735 in Hole Spacing (D) 3.875 in Hole Position (E) 0.937 in Material Steel F 1/2-13 SHCS Type QuickChange Master Jaws Finish Ground Model Compatibility RWS6002HJ, PWS-6900 Weight 3.60 lbs.
