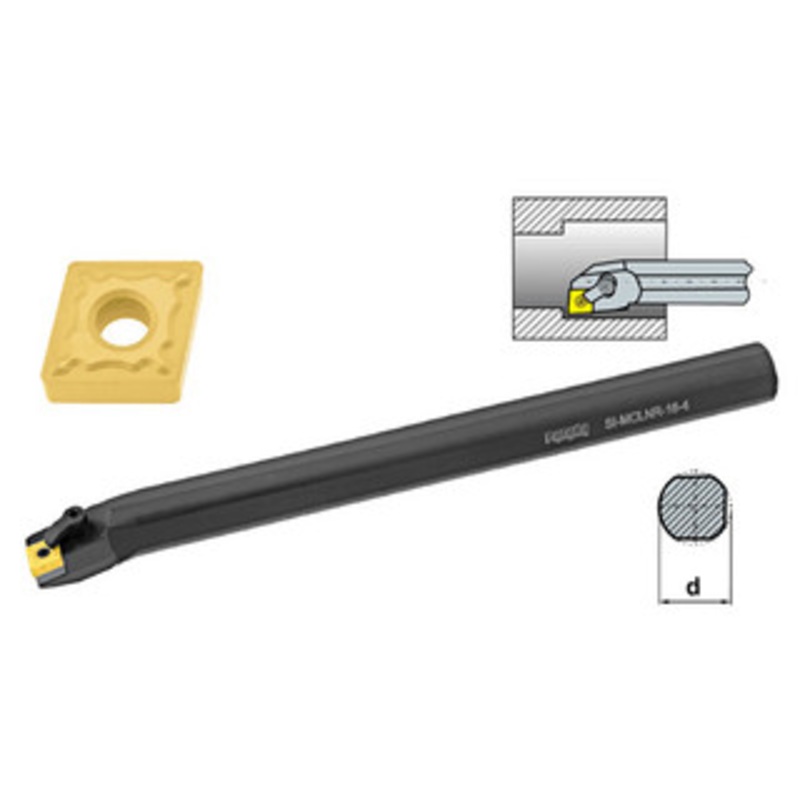

TMX Boring Bar, SI-MCLNL 32-6 for Negative 80 CNM
Inserts, Left Hand, 2″ Shank Dia., 18″ Length
6-760-326L

SI-MCLNL Style, Left hand, 2 Inch Dia. Boring bar with -5 Lead forCNxx 64x Inserts

Boring Bar for Negative 80 Diamond CNM Inserts
(without coolant hole), SI-MCLNL

Features:

• SI-MCLN R/L BORING BAR Style L Negative 5 Side & End Cutting Edge Angle for negative 80 diamond CNM_ inserts
• M Style Clamping for Maximum Rigidity
• Utilizes industry standard hardware
• Hardened to 42-44 Rc
• Tools accept standard ISO/ANSI Inserts

Technical Data:

Style SI-MCLNL 32-6 Shank Diameter d in 2.00 Length L in 18.0 Head F in 1.281 Minimum Bore D 2.562 Insert Geometry CN__ Insert Size ASA 64_ Tolerances Tolerance: Kr = +/- 1 Tolerance: F = +0.0/-0.01 mm Tolerance: d = +0.0/-0.0029 mm Tolerance: L = +0.114/-0.0 mm D min = 2.562 mm Spare Parts Shim 6-998-6020 Shim Screw 6-998-6547 Lock Pin 6-998-6275 Clamp 6-998-6411 Clamp Screw 6-998-6531 Hex Key 6-998-156 Hex Key 2 6-998-159 Anti Seize Lube 290-ASEIZE-03 2015 TMX Cutting Tools Catalog Page 188
