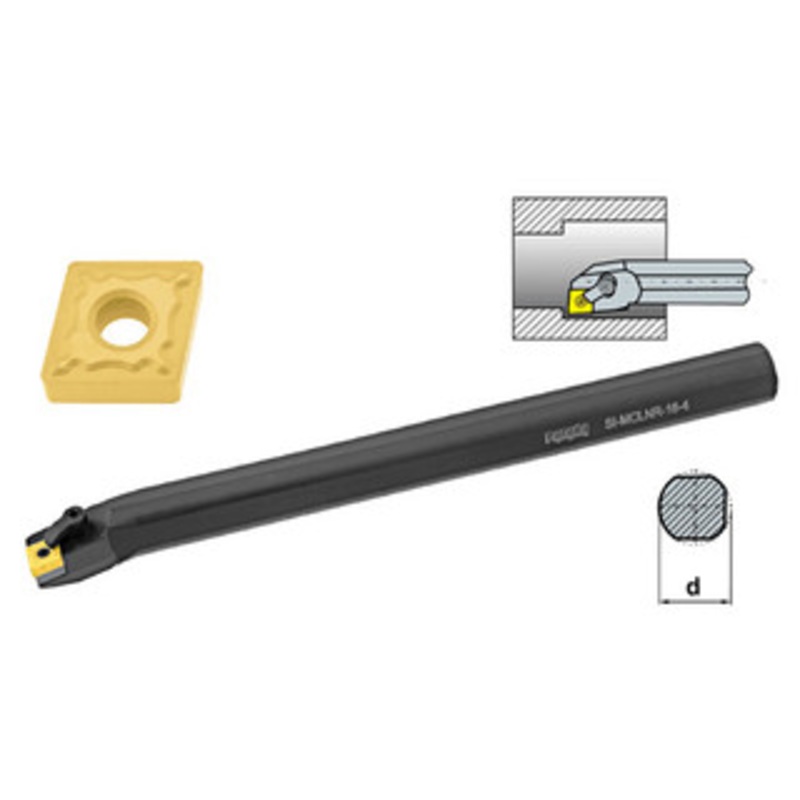

TMX Boring Bar with Coolant Hole, AI-MCLNL 20-4T for Negative 80 CNM Inserts, Left Hand, 1.25″ Shank Dia., 14″ Length – 6-760-604L

AI-MCLNL Style, Left hand, 1-1/4 Inch Dia. COOLANT-THRU Boring bar with -5 Lead for CNxx 43x Inserts

Boring Bar for Negative 80 Diamond CNM Inserts
(with coolant hole), AI-MCLNL

Features:

• AI-MCLN R/L BORING BAR Style L Negative 5 Side & End Cutting Edge Angle for negative 80 diamond CNM_ inserts
• M Style Clamping for Maximum Rigidity
• Utilizes industry standard hardware
• Hardened to 42-44 Rc
• Tools accept standard ISO/ANSI Inserts

Technical Data:

Style AI-MCLNL 20-4T Shank Diameter d in 1.25 Length L in 14.0 Head F in 0.765 Minimum Bore D 1.53 Insert Geometry CN__ Insert Size ASA 43_ Tolerances Tolerance: Kr = +/- 1 Tolerance: F = +0.0/-0.01 mm Tolerance: d = +0.0/-0.002 mm Tolerance: L = +0.014/-0.0 mm D min = 1.280 mm Spare Parts Shim 6-998-6009 Shim Screw 6-998-6543 Lock Pin 6-998-6265 Clamp 6-998-6415 Clamp Screw 6-998-6526 Hex Key 6-998-150 Hex Key 2 6-998-153 Anti Seize Lube 290-ASEIZE-03 2015 TMX Cutting Tools Catalog Page 188
