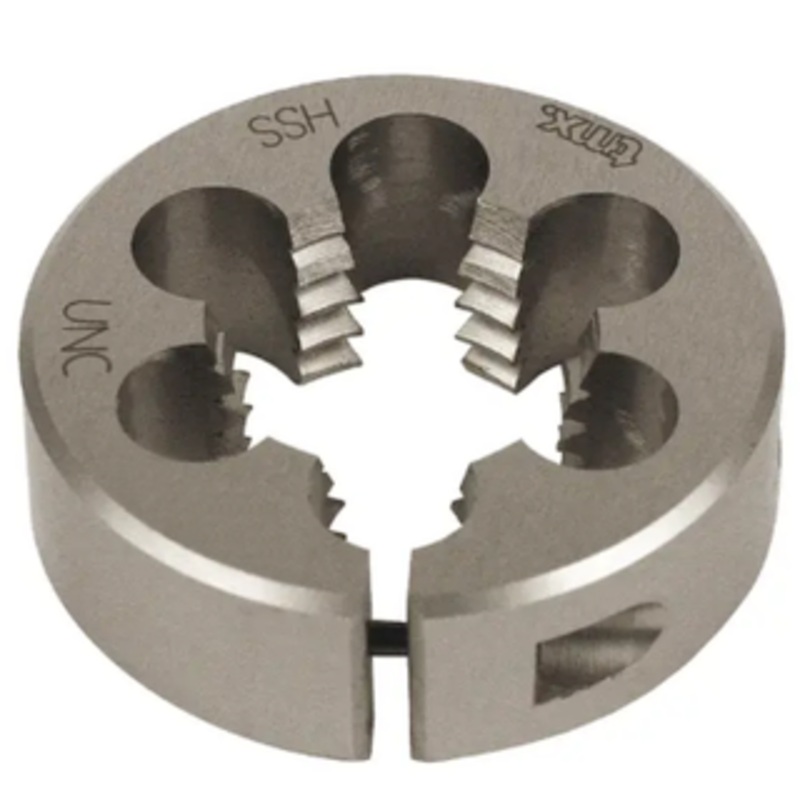

TMX Right Hand M2 H.S.S. Adjustable Round Split Die, 5/16″-24 Thread Size National Fine, 1″ O.D.

• H.S.S. – High Speed Steel
• Rc of 63-64 provides a higher Rockwell hardness than most dies for threading on more difficult materials.
• Cutting Direction: Right Hand
• For external threading of rods, bolts, studs etc.
• Hand threading applications or machine threading operations.
• Advancing the adjusting screw opens up the die resulting in slightly larger cutting size.
• Retracting the screw closes when holding screw is tightened, resulting in a slightly smaller cutting size.
• No. of Entry Nets: 1.5*P / 2*P
• 60 thread profile.
• 2A tolerance class.
• Workpiece Material Range: Steel, Non-Ferrous, Cast Iron, Plastics
