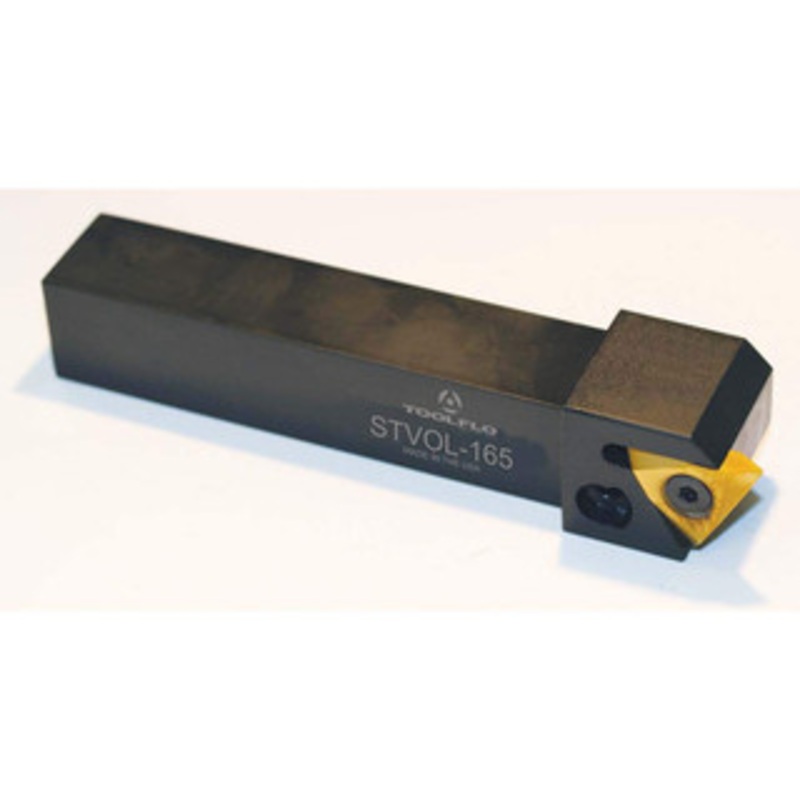

Tool-Flo 6″ OAL Left Hand External Indexable Threading Toolholder 1″ x 1″ Shank, Uses T.MC 43 Inserts, STVO Toolholder, Series On-Edge

Manufacturer Part #: 97801656

S/N: 52607694

UNSPSC: 23291800

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Thread Type External Hand of Holder Left Hand Shank Width/Diameter (Decimal Inch) 1.0000 Shank Width/Diameter (Inch) 1 Toolholder Style STVO Insert Compatibility T.MC 43 Coolant Entry Style Code 0 – Without Coolant Insert Holding Method Clamp & Pin Shank Height (Decimal Inch) 1.0000 Shank Height (Inch) 1 Overall Length (Inch) 6 Overall Length (Decimal Inch) 6.0000 Multi-use Tool Yes Cutting Tool Application Grooving, Threading Head Length (Decimal Inch) 1.2300 Maximum Depth of Cut (Decimal Inch) 0.2300 Back of Bar to Cutting Edge (Decimal Inch) 1.2500 Insert Inscribed Circle (Decimal Inch) 0.5000 Coolant Through No Series On-Edge
