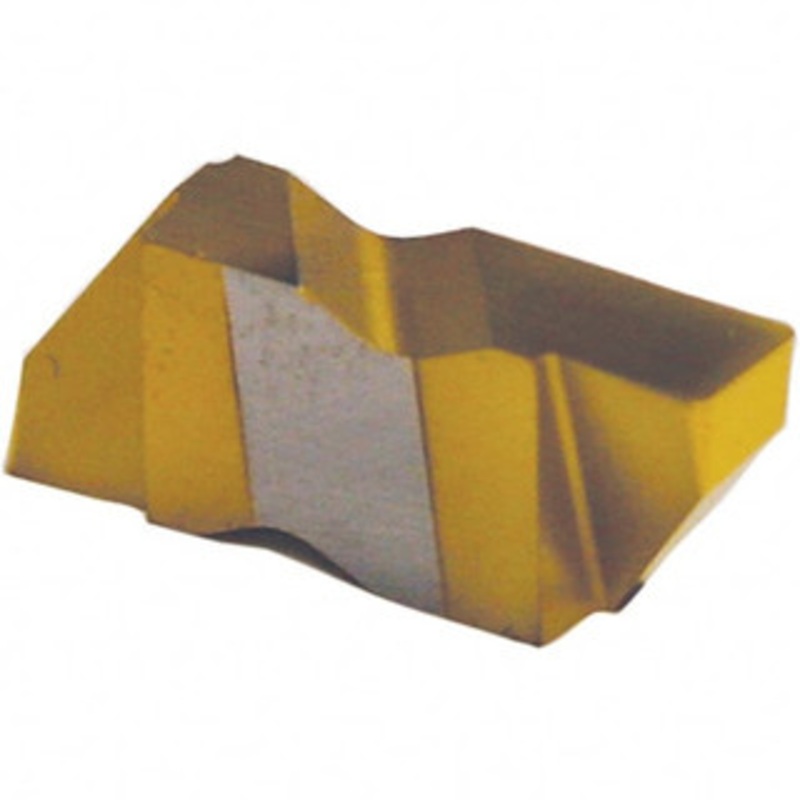

Tool-Flo FLF3125L GP3R Carbide Grooving Insert TiN Finish, LH, 3.18mm Cutting Width, 0.18 Max Depth, Series Face Grooving 563025LJ5R – 04379285

Tool-Flo FLF3125L GP3R Carbide Grooving Insert TiN Finish, LH, 3.18mm Cutting Width, 0.18 Max Depth, Series Face Grooving 563025LJ5R – 04379285

  • $19.02
  • $31.70
Availability: In Stock

Tool-Flo FLF3125L GP3R Carbide Grooving Insert TiN Finish, LH, 3.18mm Cutting Width, 0.18" Max Depth, Series Face GroovingManufacturer Part #: 563025LJ5RS/N: 04379285UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:Insert StyleF

Category:
Share:
payment
Description Reviews (0)

Tool-Flo FLF3125L GP3R Carbide Grooving Insert TiN Finish, LH, 3.18mm Cutting Width, 0.18″ Max Depth, Series Face Grooving

Manufacturer Part #: 563025LJ5R

S/N: 04379285

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style FLF Cutting Width (Decimal Inch) 0.1250 Cutting Width (mm) 3.18 Insert Hand Left Hand Maximum Depth of Cut (Decimal Inch) 0.1800 Insert Material Solid Carbide Manufacturer Grade GP3R Full Radius No Corner Radius (Decimal Inch) 0.0050 to 0.0100 Insert Holding Method Clamp Insert Size 3125 Material Grade Micrograin Maximum Depth Of Cut Range (Decimal Inch) 0.1500 to 0.2000 Cutting Height (Decimal Inch) 0.3440 Multi-use Tool No Series Face Grooving Coating Process PVD Maximum Corner Radius (Decimal Inch) 0.0100 Minimum Corner Radius (Decimal Inch) 0.0050 Manufacturers Catalog Number FLF-3125L Insert Thickness (Decimal Inch) 0.1950 Coating/Finish TiN Single Or Double End Double
