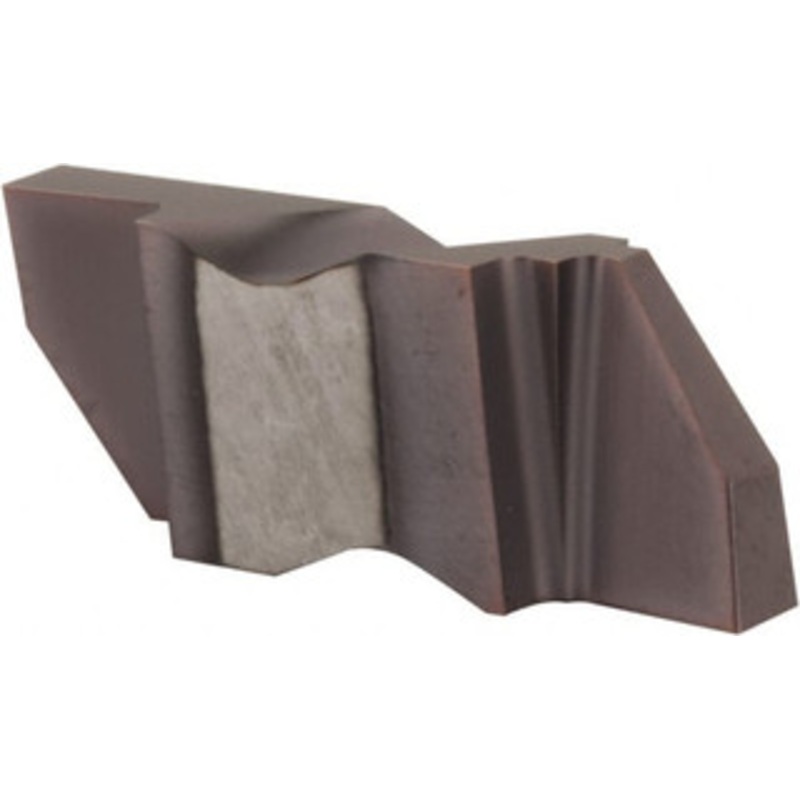

Name: Tool-Flo FLG-3047L-CB AC3R Carbide Grooving Insert AlTiN Finish, LH, 0.047 Cutting Width, 0.075 Max Depth, Series Flo-Lock 563647PLAC3R - 61506986
SKU: 6.1506986E7
Availability: InStock

Tool-Flo FLG-3047L-CB AC3R Carbide Grooving Insert AlTiN Finish, LH, 0.047 Cutting Width, 0.075 Max Depth, Series Flo-Lock 563647PLAC3R – 61506986

$20.36
~~$33.93~~

Availability: In Stock

Tool-Flo FLG-3047L-CB AC3R Carbide Grooving Insert AlTiN Finish, LH, 0.047" Cutting Width, 0.075" Max Depth, Series Flo-LockManufacturer Part #: 563647PLAC3RS/N: 61506986UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:Insert St

Category: Cutting Tools

Description Reviews (0)

Tool-Flo FLG-3047L-CB AC3R Carbide Grooving Insert AlTiN Finish, LH, 0.047″ Cutting Width, 0.075″ Max Depth, Series Flo-Lock

Manufacturer Part #: 563647PLAC3R

S/N: 61506986

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style FLG Insert Size Code 3047CB Cutting Width (Decimal Inch) 0.0470 Insert Hand Left Hand Maximum Depth of Cut (Decimal Inch) 0.0750 Insert Material Solid Carbide Manufacturer Grade AC3 Full Radius No Corner Radius (Decimal Inch) 0.0050 to 0.0100 Rake Neutral Insert Holding Method Clamp Insert Size 0.375 Material Grade C2, C3 Maximum Depth Of Cut Range (Decimal Inch) 0.0750 to 0.1000 Cutting Height (Decimal Inch) 0.0750 Lead Angle 3 Multi-use Tool No Series Flo-Lock Coating Process PVD Rake Angle 0.00 Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Stainless Steel Iso Code FLG-3047L-CB Maximum Corner Radius (Decimal Inch) 0.0100 Minimum Corner Radius (Decimal Inch) 0.0050 Manufacturers Catalog Number FLG-3047L-CB Chip Breaker CB Gage Diameter (Decimal Inch) 0.3750 Overall Width (Decimal Inch – 4 Decimals) 0.1950 Coating/Finish AlTiN Single Or Double End Double
