Tool-Flo FLG3047R AC3R Carbide Grooving Insert AlTiN Finish, RH, 0.047 Cutting Width, 0.075 Max Depth, Series Flo-Lock 563647RAC3R – 65952319

Tool-Flo FLG3047R AC3R Carbide Grooving Insert AlTiN Finish, RH, 0.047 Cutting Width, 0.075 Max Depth, Series Flo-Lock 563647RAC3R – 65952319

  • $20.36
  • $33.93
Availability: In Stock

Tool-Flo FLG3047R AC3R Carbide Grooving Insert AlTiN Finish, RH, 0.047" Cutting Width, 0.075" Max Depth, Series Flo-LockManufacturer Part #: 563647RAC3RS/N: 65952319UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:Insert StyleFL

Category:
Share:
payment
Description Reviews (0)

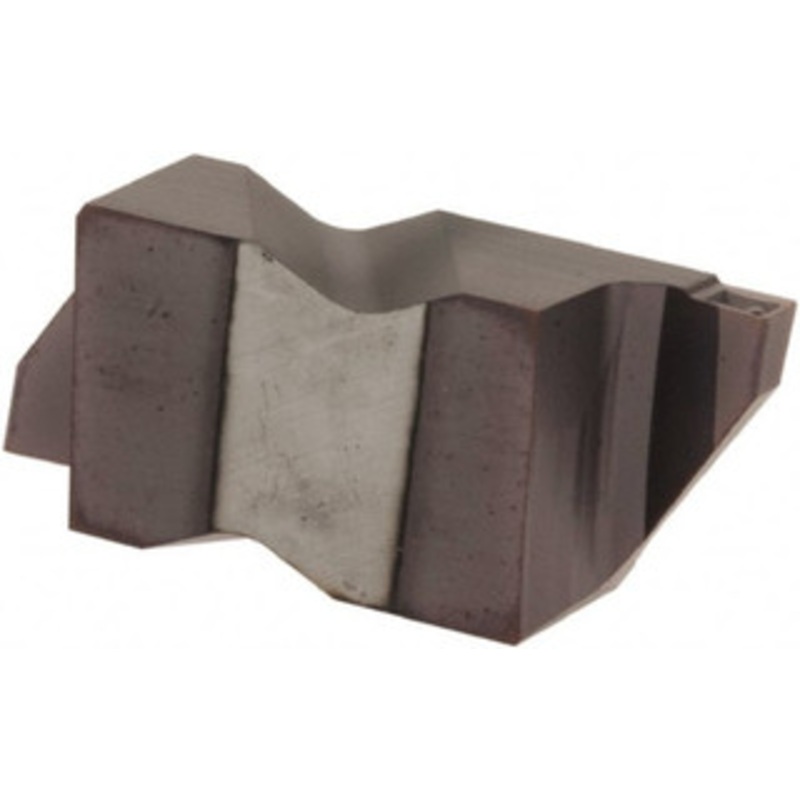

Tool-Flo FLG3047R AC3R Carbide Grooving Insert AlTiN Finish, RH, 0.047″ Cutting Width, 0.075″ Max Depth, Series Flo-Lock

Manufacturer Part #: 563647RAC3R

S/N: 65952319

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style FLG Insert Size Code 3047 Cutting Width (Decimal Inch) 0.0470 Insert Hand Right Hand Maximum Depth of Cut (Decimal Inch) 0.0750 Insert Material Solid Carbide Manufacturer Grade AC3 Full Radius No Corner Radius (Decimal Inch) 0.0050 to 0.0100 Rake Neutral Insert Size 3047 Material Grade C2, C3 Maximum Depth Of Cut Range (Decimal Inch) 0.0750 to 0.1000 Cutting Height (Decimal Inch) 0.3440 Lead Angle 0 Multi-use Tool No Series Flo-Lock Coating Process PVD Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Stainless Steel Iso Code FLG-3047R Maximum Corner Radius (Decimal Inch) 0.0100 Minimum Corner Radius (Decimal Inch) 0.0050 Manufacturers Catalog Number FLG-3047R Insert Thickness (Decimal Inch) 0.1950 Insert Seat Size 3 Coating/Finish AlTiN Single Or Double End Double
