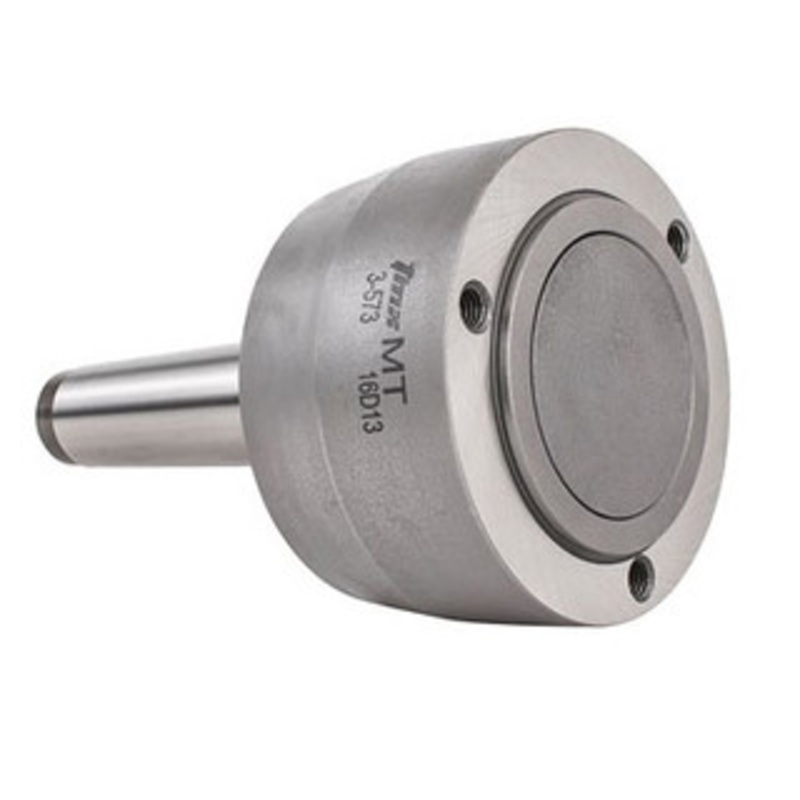

Toolmex Rotating Bodies for 3″ – 6″ Diameter Chucks or Heads

• Designed for use with interchangeable tapered heads or with 3″, 4″, and 5″ front mounting, self-centering chucks
• Steel body construction with hardened and ground scroll and pinions
• Hardened and ground MT shank
• T.I.R.: 0.002″
• Triple bearing design
• Sealed ball bearings, lubrication through roller
• All interchangeable parts can be easily replaced
• Bodies, chucks and heads sold separately
• Made in Europe

Item No. Max RPM Max Workpiece Weight Weight Length L Body Dia. D 3-573-032P 4000 1543 lbs. 4.38 lbs. 4.84″ 3.07″ 3-573-033P 4000 1543 lbs.
2.40 lbs. 5.52″ 3.07″ 3-573-043P 3500 2205 lbs. 8.00 lbs. 5.63″ 3.86″ 3-573-044P 3500 2205 lbs. 7.90 lbs. 6.54″ 3.86″ 3-573-054P 3200 3307 lbs. 15.30 lbs. 6.89″ 4.84″ 3-573-055P 3200 3307 lbs. 7.95 lbs. 7.95″ 4.84″ 3-573-065P 3000 3900 lbs. 16.50 lbs. 8.07″ 6.30″
