Name: Tungaloy 45 Lead Angle, 1.846 to 2.205 Cut Diam, Indexable &amp; Chamfer End Mill Takes 2 Inserts, XCET Insert Style, ECC Toolholder, 4-1/4 OAL, 0.827 Max Depth of Cut 6811811 - 78069820
SKU: 7.806982E7
Availability: InStock

Tungaloy 45 Lead Angle, 1.846 to 2.205 Cut Diam, Indexable & Chamfer End Mill Takes 2 Inserts, XCET Insert Style, ECC Toolholder, 4-1/4 OAL, 0.827 Max Depth of Cut 6811811 – 78069820

$145.00
~~$689.07~~

Availability: In Stock

Tungaloy 45 Lead Angle, 1.846" to 2.205" Cut Diam, Indexable & Chamfer End Mill Takes 2 Inserts, XCET Insert Style, ECC Toolholder, 4-1/4" OAL, 0.827" Max Depth of CutManufacturer Part #: 6811811S/N: 78069820UNSPSC: 23291600UPC: 000780698206(Minimum Order

Category: Cutting Tools

Description Reviews (0)

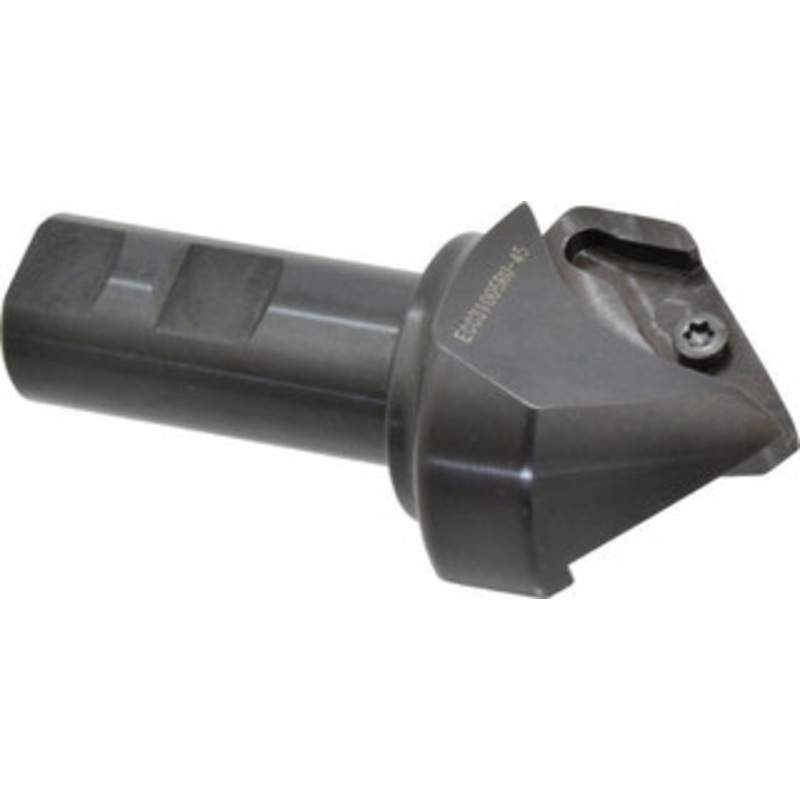

Tungaloy 45 Lead Angle, 1.846″ to 2.205″ Cut Diam, Indexable & Chamfer End Mill Takes 2 Inserts, XCET Insert Style, ECC Toolholder, 4-1/4″ OAL, 0.827″ Max Depth of Cut

Manufacturer Part #: 6811811

S/N: 78069820

UNSPSC: 23291600

UPC: 000780698206

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Minimum Cutting Diameter (Decimal Inch) 1.8460 Maximum Cutting Diameter (Decimal Inch) 2.2050 Maximum Depth of Cut (Decimal Inch) 0.8270 Compatible Insert Size Code XCET3104 Shank Diameter (Inch) 1 Shank Diameter (Decimal Inch) 1.0000 Number Of Cutter Inserts 2 Cutting Direction Right Hand Insert Style XCET Insert Holding Method Screw Overall Length (Decimal Inch) 4.2500 Overall Height (Decimal Inch) 2.2050 Toolholder Style ECC Functional Length (Decimal Inch) 4.2500 Maximum Body Diameter (Decimal Inch) 1.0000 Maximum RPM 3000 Tool Application Chamfering Primary Workpiece Material Universal Primary Workpiece Material Code K, M, P Standards ISO Head Length (Decimal Inch) 1.9690 Number Of Flutes 2 End Mill Material Solid Carbide Axial Rake Angle (Degrees) -5 to -3 Radial Rake Angle (Degrees) -15 to -12 Included Angle Degree 90 Shank Type Weldon Flat
