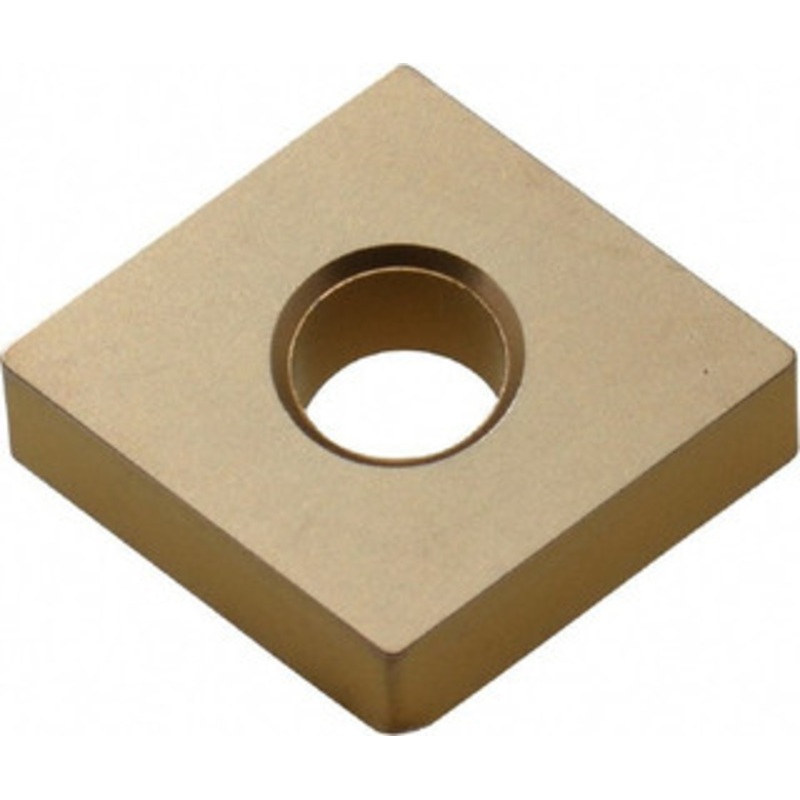

Tungaloy CNMA431 T5125 Carbide Turning Insert TiCN/Al2O3 Finish, 1/2 Inscribed Circle, 1/64 Corner Radius, 80 Diamond 6850125 – 35561067

Tungaloy CNMA431 T5125 Carbide Turning Insert TiCN/Al2O3 Finish, 1/2 Inscribed Circle, 1/64 Corner Radius, 80 Diamond 6850125 – 35561067

  • $11.96
  • $19.93
Availability: In Stock

Tungaloy CNMA431 T5125 Carbide Turning Insert TiCN/Al2O3 Finish, 1/2" Inscribed Circle, 1/64" Corner Radius, 80 DiamondManufacturer Part #: 6850125S/N: 35561067UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:ANSI Insert CodeCNM

Category:
Share:
payment
Description Reviews (0)

Tungaloy CNMA431 T5125 Carbide Turning Insert TiCN/Al2O3 Finish, 1/2″ Inscribed Circle, 1/64″ Corner Radius, 80 Diamond

Manufacturer Part #: 6850125

S/N: 35561067

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

ANSI Insert Code CNMA431 ISO Insert Code CNMA120404 Relief Angle 0 Insert Style CNMA Corner Radius (Inch) 1/64 Corner Radius (Decimal Inch) 0.0157 Included Angle 80 Manufacturer Grade T5125 Coating/Finish TiCN, Al2O3, TiN Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series CNM/GA Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Inscribed Circle (mm) 12.70 Insert Material Carbide Insert Shape C – Diamond (Rhombic) 80-Deg Chip Breaker Operation Finishing Grade Characteristics Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness Number Of Cutting Edges 4 Side Clearance Negative Insert Shape Code C Hole Diameter (Decimal Inch) 0.2030 Maximum Depth of Cut (Decimal Inch) 0.0787 Insert Holding Method Clamp, Pin Width (Inch) 1/2 Clearance Code N Tolerance Code M Coating Process CVD Length Range (Decimal Inch) 0.5000 – 0.6000 Rake Negative Insert Length (Decimal Inch) 0.5080 Primary Workpiece Material Cast Iron Primary Workpiece Material Code K Iso Code CNMA431 Standards ANSI, ISO Manufacturers Catalog Number 6850125 Material Grade K15, K30 Proprietary Coating Designation Multilayer Coating Coating Classification CVD Chip Breaker Flat Top Rake Angle 0 Cutting Edge Style Honed Industry Standard Number CNMA 431 Width (Decimal Inch – 4 Decimals) 0.5000 Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring ANSI Size Code 431 ISO Size Code 120404 UNSPSC Code 23242105 Insert Size Code 431
