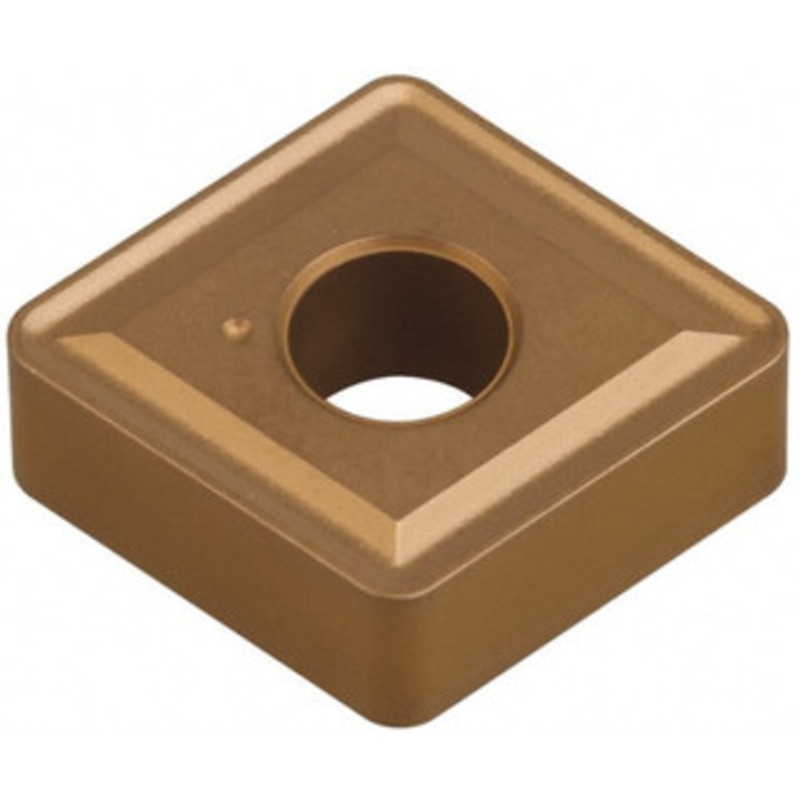

Tungaloy CNMG434 T5105 Carbide Turning Insert TiCN/Al2O3 Finish, 1/2 Inscribed Circle, 1/16 Corner Radius, 80 Diamond 6852913 – 35560796

Tungaloy CNMG434 T5105 Carbide Turning Insert TiCN/Al2O3 Finish, 1/2 Inscribed Circle, 1/16 Corner Radius, 80 Diamond 6852913 – 35560796

  • $13.12
  • $21.87
Availability: In Stock

Tungaloy CNMG434 T5105 Carbide Turning Insert TiCN/Al2O3 Finish, 1/2" Inscribed Circle, 1/16" Corner Radius, 80 DiamondManufacturer Part #: 6852913S/N: 35560796UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:Relief Angle0Insert

Category:
Share:
payment
Description Reviews (0)

Tungaloy CNMG434 T5105 Carbide Turning Insert TiCN/Al2O3 Finish, 1/2″ Inscribed Circle, 1/16″ Corner Radius, 80 Diamond

Manufacturer Part #: 6852913

S/N: 35560796

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Relief Angle 0 Insert Style CNMG Corner Radius (Inch) 1/16 Corner Radius (Decimal Inch) 0.0629 Included Angle 80degree Manufacturer Grade T5105 Coating/Finish TiCN, Al2O3, TiN Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series CNMG Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Inscribed Circle (mm) 12.70 Insert Material Carbide Insert Shape Diamond 80 Number Of Cutting Edges 4 Insert Shape Code C Hole Diameter (Decimal Inch) 0.2030 Maximum Depth of Cut (Decimal Inch) 0.2362 Insert Holding Method Clamp, Pin Width (Inch) 1/2in Clearance Code N Tolerance Code M Coating Process CVD Length Range (Decimal Inch) 0.5000 – 0.6000 Rake Negative Insert Length (Decimal Inch) 0.5080 Primary Workpiece Material Cast Iron Primary Workpiece Material Code K Iso Code CNMG 434 Standards ANSI, ISO Manufacturers Catalog Number 6852913 Material Grade K05, K15 Proprietary Coating Designation Multilayer Coating Coating Classification CVD Chip Breaker Common Rake Angle -15 Cutting Edge Style Chamfered & Honed Industry Standard Number CNMG 434 Width (Decimal Inch – 4 Decimals) 0.5000in Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring UNSPSC Code 23242105 Insert Size Code 434
