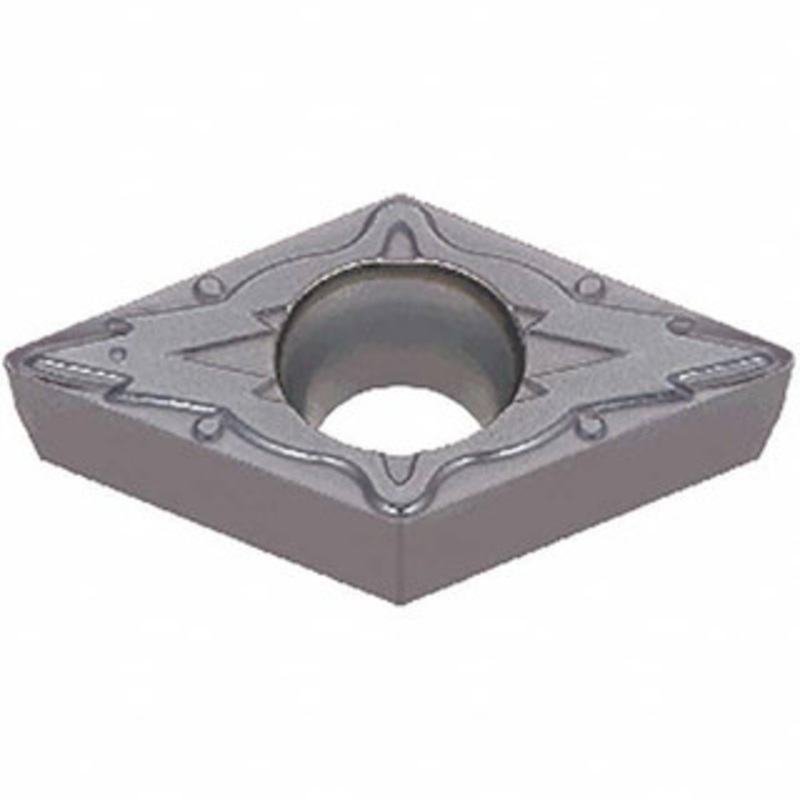

Tungaloy DCMT11T304-PSF AH8015 Carbide Turning Insert TiAlN Finish, RH, 11.6mm Long, 3/8″ Inscribed Circle, 1/64″ Corner Radius, 55 Diamond, Series TurnLine
Manufacturer Part #: 6746101
S/N: 47594924
UNSPSC: 23242105
(Minimum Order Quantity=10, Package Quantity=1)
(Please order in multiples of 10)
Specifications:
| Relief Angle |
7 |
| Insert Style |
DCMT |
| Corner Radius (mm) |
0.40 |
| Corner Radius (Inch) |
1/64 |
| Corner Radius (Decimal Inch) |
0.0157 |
| Included Angle |
55degree |
| Manufacturer Grade |
AH8015 |
| Coating/Finish |
TiAlN |
| Wiper Edge |
No |
| Insert Hand |
Neutral |
| Insert Thickness |
3.97 |
| Insert Thickness (Inch) |
5/32 |
| Insert Thickness (Decimal Inch) |
0.1563 |
| Series |
DCMT-PSF |
| Inscribed Circle (Inch) |
3/8 |
| Inscribed Circle (Decimal Inch) |
0.3750 |
| Inscribed Circle (mm) |
9.52 |
| Insert Material |
Carbide |
| Insert Shape |
Diamond 55 |
| Number Of Cutting Edges |
2 |
| Insert Shape Code |
D |
| Hole Diameter (Decimal Inch) |
0.1730 |
| Hole Diameter (Mm) ( – 0 Decimals) |
4.40 |
| Maximum Depth of Cut (mm) |
0.50 |
| Maximum Depth of Cut (Decimal Inch) |
0.0197 |
| Insert Holding Method |
Screw |
| Width (Inch) |
3/8in |
| Clearance Code |
C |
| Tolerance Code |
M |
| Coating Process |
PVD |
| Length Range (Decimal Inch) |
0.7000 – 10.0000 |
| Rake |
Positive |
| Insert Length (mm) |
11.60 |
| Insert Length (Decimal Inch) |
0.9140 |
| Primary Workpiece Material |
Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code |
P, M, K, N, S, H |
| Iso Code |
DCMT 11T304 |
| Standards |
ANSI, ISO |
| Manufacturers Catalog Number |
6746101 |
| Material Grade |
M10, M20, S10, S20 |
| Coating Classification |
PVD |
| Chip Breaker |
PSF |
| Rake Angle |
20 |
| Cutting Edge Style |
Chamfered & Honed |
| Industry Standard Number |
DCMT 32.51 PSF |
| Width (Decimal Inch – 4 Decimals) |
0.3750in |
| Multi-Use Tool |
Yes |
| Full Radius |
No |
| Multi-Use Application |
Turning, Facing, Boring, Back Turning, Back Boring |
| UNSPSC Code |
23242105 |
| Insert Size Code |
32.51 |
