Value Collection TPGT321HF I22 Carbide Turning Insert 3/8 Inscribed Circle, 1/64 Corner Radius, 60 Triangle, Series American Value 42260 – 04246807

Value Collection TPGT321HF I22 Carbide Turning Insert 3/8 Inscribed Circle, 1/64 Corner Radius, 60 Triangle, Series American Value 42260 – 04246807

  • $18.60
  • $31.00
Availability: In Stock

Value Collection TPGT321HF I22 Carbide Turning Insert 3/8" Inscribed Circle, 1/64" Corner Radius, 60 Triangle, Series American ValueManufacturer Part #: 42260S/N: 04246807UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:ANSI Ins

Category:
Share:
payment
Description Reviews (0)

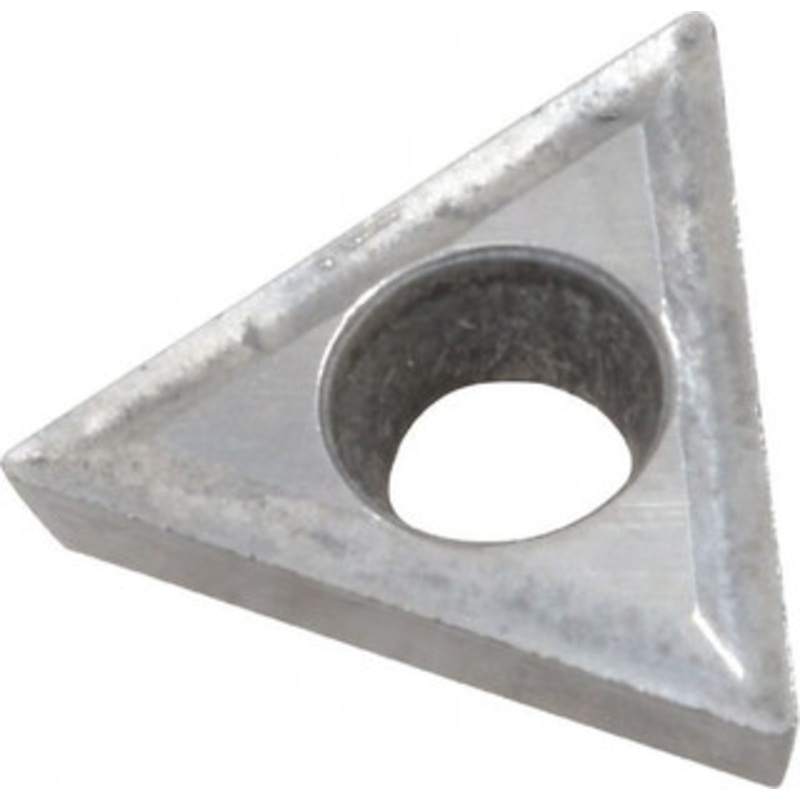

Value Collection TPGT321HF I22 Carbide Turning Insert 3/8″ Inscribed Circle, 1/64″ Corner Radius, 60 Triangle, Series American Value

Manufacturer Part #: 42260

S/N: 04246807

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

ANSI Insert Code TPGT321 ISO Insert Code TPGT160304 Relief Angle 11 Insert Style TPGT Corner Radius (Inch) 1/64 Corner Radius (Decimal Inch) 0.0156 Included Angle 60 Manufacturer Grade I22 Insert Thickness (Inch) 1/8 Insert Thickness (Decimal Inch) 0.1250 Series American Value Inscribed Circle (Inch) 3/8 Inscribed Circle (Decimal Inch) 0.3750 Insert Material Carbide Insert Shape T – Triangle Side Clearance Positive Insert Shape Code T Hole Diameter (Decimal Inch) 0.1770 Insert Holding Method Screw Clearance Code P Tolerance Code G Rake Neutral Primary Workpiece Material Code K, M, N, S Material Grade C2 Chip Breaker T Rake Angle 0 ANSI Size Code 321 ISO Size Code 160304 UNSPSC Code 23242105 Insert Size Code 321
