Value Collection VBMT2205 TCN55 Carbide Turning Insert TiN Finish, 1/4 Inscribed Circle, 0.008 Corner Radius, 1/8 Thick, 35 Diamond ICP65125E – 78233996

Value Collection VBMT2205 TCN55 Carbide Turning Insert TiN Finish, 1/4 Inscribed Circle, 0.008 Corner Radius, 1/8 Thick, 35 Diamond ICP65125E – 78233996

  • $25.37
  • $42.28
Availability: In Stock

Value Collection VBMT2205 TCN55 Carbide Turning Insert TiN Finish, 1/4" Inscribed Circle, 0.008" Corner Radius, 1/8" Thick, 35 DiamondManufacturer Part #: ICP65125ES/N: 78233996UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:AN

Category:
Share:
payment
Description Reviews (0)

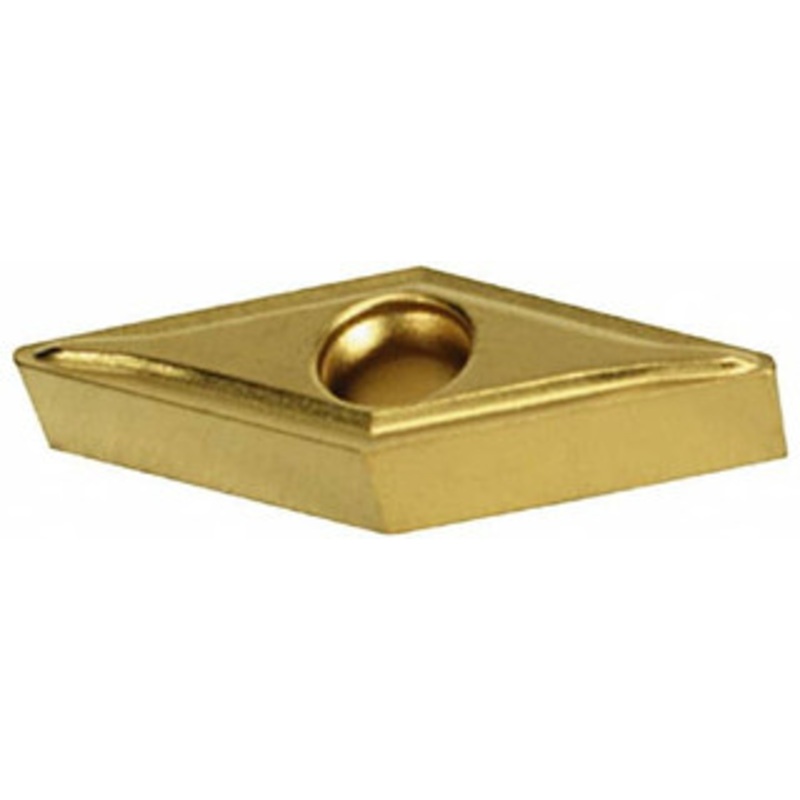

Value Collection VBMT2205 TCN55 Carbide Turning Insert TiN Finish, 1/4″ Inscribed Circle, 0.008″ Corner Radius, 1/8″ Thick, 35 Diamond

Manufacturer Part #: ICP65125E

S/N: 78233996

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

ANSI Insert Code VBMT220.5 ISO Insert Code VBMT110302 Relief Angle 5 Insert Style VBMT Corner Radius (Decimal Inch) 0.0080 Included Angle 35 Manufacturer Grade TCN55 Coating/Finish TiN Insert Thickness (Inch) 1/8 Insert Thickness (Decimal Inch) 0.1250 Inscribed Circle (Inch) 1/4 Inscribed Circle (Decimal Inch) 0.2500 Inscribed Circle (mm) 6.35 Insert Material Carbide Insert Shape V – Diamond (Rhombic) 35-Deg Side Clearance Positive Insert Shape Code V Hole Diameter (Decimal Inch) 0.1100 Insert Holding Method Screw Clearance Code B Tolerance Code M Primary Workpiece Material Code M, P Material Grade C5 Chip Breaker T ANSI Size Code 220.5 ISO Size Code 110302 UNSPSC Code 23242105 Insert Size Code 220.5
