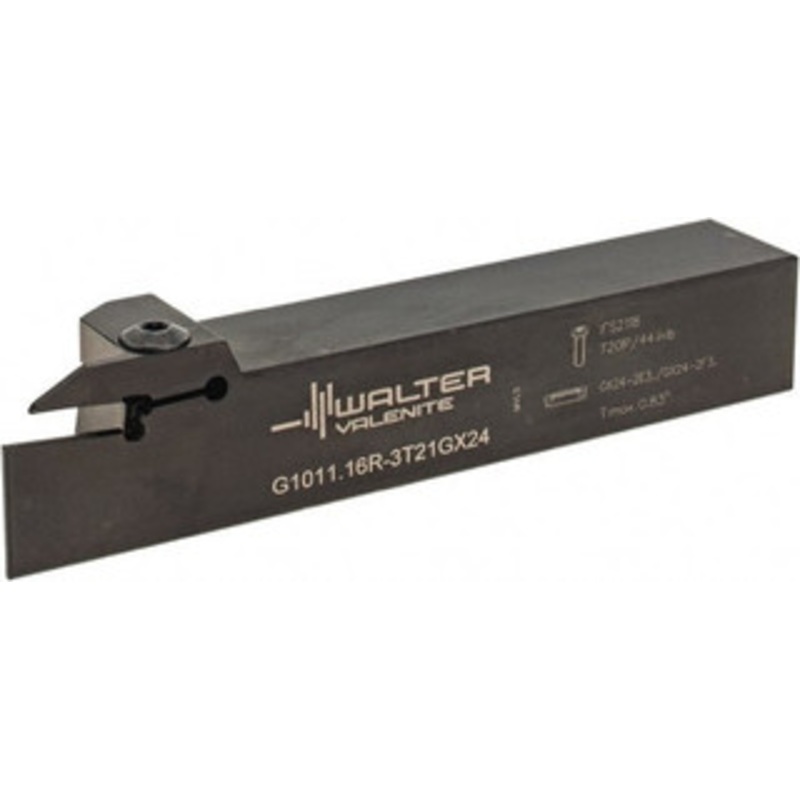

Walter Tools 21.01mm Max Depth, 3mm to 3.18mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 150.01mm OAL, 25.4mm x 25.4mm Shank, Uses GX24-2E3/F3.. Inserts, G1011 Toolholder
Manufacturer Part #: 5622791
S/N: 71970131
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External |
External |
| Hand of Holder |
Right Hand |
| Maximum Depth of Cut (Decimal Inch) |
0.8270 |
| Maximum Depth of Cut (mm) |
21.01 |
| Maximum Groove Width (Decimal Inch) |
0.1250 |
| Maximum Groove Width (mm) |
3.18 |
| Minimum Groove Width (Decimal Inch) |
0.1180 |
| Minimum Groove Width (mm) |
3.00 |
| Toolholder Style |
G1011 |
| Insert Holding Method |
Screw |
| Compatible Insert Size Code |
GX24-2E3/F3 |
| Insert Compatibility |
GX24-2E3/F3.. |
| Shank Height (mm) |
25.40 |
| Shank Height (Decimal Inch) |
1.0000 |
| Shank Length (mm) |
110.00 |
| Shank Length (Decimal Inch) |
4.3307 |
| Shank Width/Diameter (Decimal Inch) |
1.0000 |
| Shank Width/Diameter (mm) |
25.40 |
| Series |
G1011 |
| Overall Length (mm) |
150.01 |
| Overall Length (Decimal Inch) |
5.9060 |
| Cutting Tool Application |
Cut-Off, Grooving |
| Full Radius Insert |
No |
| Back of Bar to Cutting Edge (Decimal Inch) |
1.0160 |
| Head Length (Decimal Inch) |
1.5750 |
| Head Length (mm) |
40.01 |
| Primary Workpiece Material |
Universal |
| Primary Workpiece Material Code |
H, K, M, N, P, S |
| Complete Insert Compatibility |
GX24-2E300N02-CE4, GX24-2E300N02-CF5, GX24-2E300N02-CF6, GX24-2E300N020-CE4, GX24-2E300N03-GD3, GX24-2E300N03-GD6, GX24-2E300N03-UD6, GX24-2E300N03-UF4, GX24-2E300N030-GD3, GX24-2E300N030-UA4, GX24-2E300N030-UF4, GX24-2E300N15-RD4, GX24-2E300N150-RD4 |
| Insert Corner Radius (Decimal Inch) |
0.0630 |
| Coolant Through |
No |
| UNSPSC Code |
23153308 |
