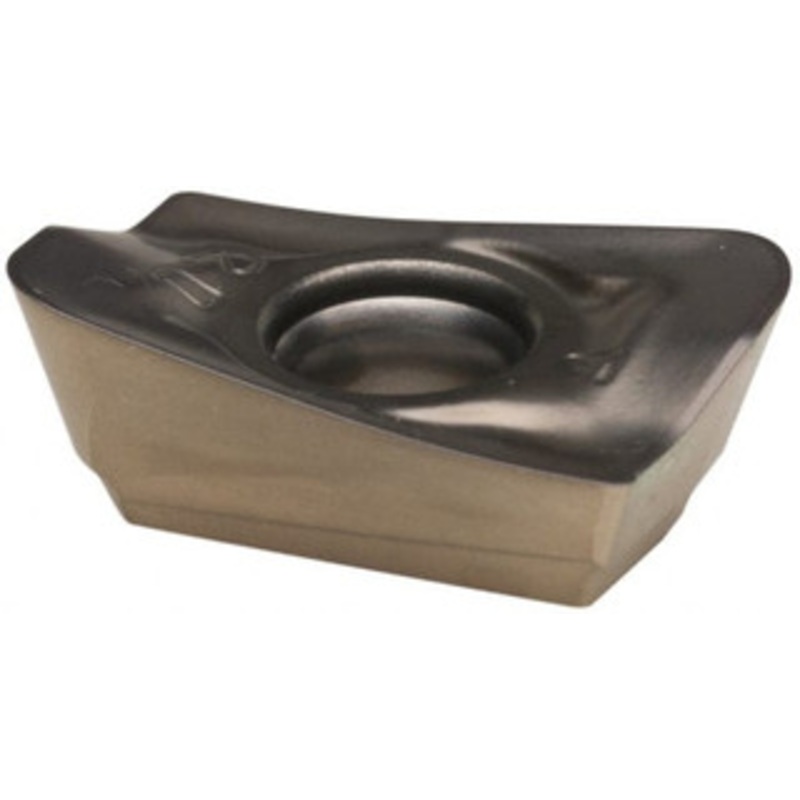

Walter Tools ADKT1204PERF56 WKP25S Carbide Milling Insert TiCN/Al2O3 Finish, 0.1874″ Thick
Manufacturer Part #: 6071150
S/N: 43484781
UNSPSC: 23291601
(Minimum Order Quantity=10, Package Quantity=1)
(Please order in multiples of 10)
Specifications:
| Insert Style |
ADKT |
| Insert Size |
12 |
| Insert Material |
Solid Carbide |
| Insert Shape |
Parallelogram |
| Manufacturer Grade |
WKP25S |
| Corner Radius (Decimal Inch) |
0.0320 |
| Corner Radius (mm) |
0.81 |
| Number Of Cutting Edges |
2 |
| Thickness (Decimal Inch – 4 Decimals) |
0.1875 |
| Coating/Finish |
TiCN, Al2O3, TiCN |
| Relief Angle |
15.00 |
| Maximum Depth of Cut (Decimal Inch) |
0.5350 |
| Insert Size Code |
1204 |
| Material Grade |
P25, K25 |
| Thickness (Inch) |
3/16 |
| Inscribed Circle (Decimal Inch) |
0.3310 |
| Thickness Range (Decimal Inch) |
0.1850 to 0.2000 |
| Corner Radius (Inch) |
1/32 |
| Inscribed Circle Range (Decimal Inch) |
0.3000 to 0.3500 |
| Length Range (Decimal Inch) |
0.5000 to 0.6000 |
| Insert Hand |
Right Hand |
| Series |
ADKT |
| Coating Process |
CVD |
| Rake |
Positive |
| Primary Workpiece Material |
Steel, Cast Iron |
| Primary Workpiece Material Code |
P, K |
| Ansi Code |
ADKT1204PER-F56 WKP25S |
| Iso Code |
ADKT1204PER-F56 WKP25S |
| Standards |
ANSI, ISO |
| Rake Angle |
16 |
| Cutting Edge Style |
Chamfered, Honed |
| Manufacturers Catalog Number |
ADKT1204PER-F56 |
| Cutter Series Compatibility |
F2010, F2252, F4042, F4138 |
| Chip Breaker |
F56 |
| Material Application |
Steel, Cast Iron |
| UNSPSC Code |
23291601 |
| Insert Holding Method |
Screw |
| Coating Classification |
CVD |
| Single or Double Sided Insert |
Single |
| Included Angle Degree |
85 |
| Width (Decimal Inch – 4 Decimals) |
0.3310 |
| Width (mm – 2 Decimals) |
8.40 |
| Multi-Use Tool |
Yes |
| Length (Decimal Inch – 4 Decimals) |
0.5350 |
