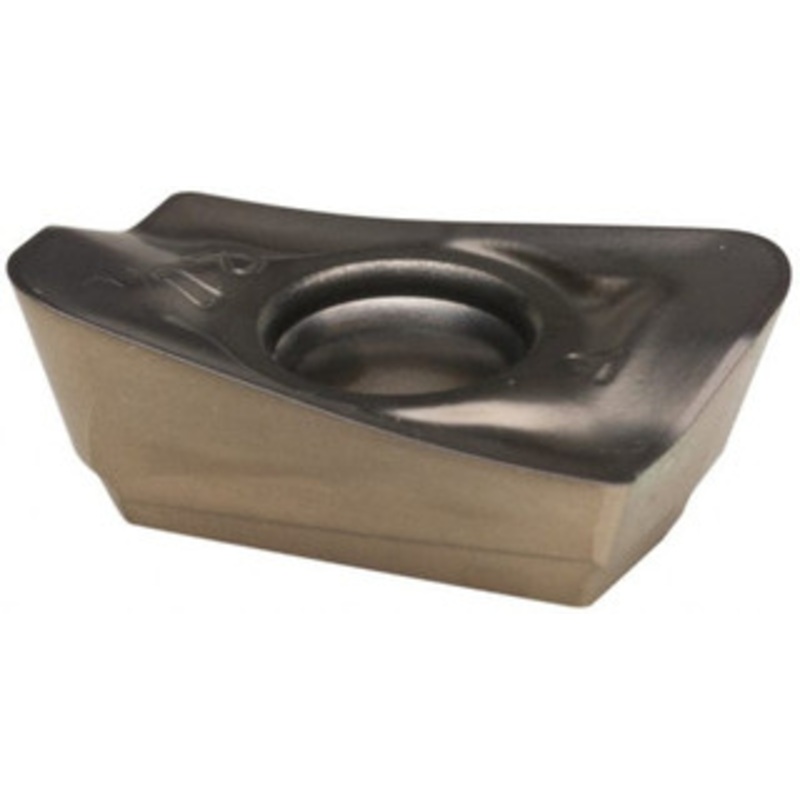

Walter Tools ADMT080304RF56 WKP25S Carbide Milling Insert TiCN/Al2O3 Finish, 0.1319″ Thick
Manufacturer Part #: 6068635
S/N: 43484724
UNSPSC: 23291601
(Minimum Order Quantity=10, Package Quantity=1)
(Please order in multiples of 10)
Specifications:
| Insert Style |
ADMT |
| Insert Size |
08 |
| Insert Material |
Solid Carbide |
| Insert Shape |
Parallelogram |
| Manufacturer Grade |
WKP25S |
| Corner Radius (Decimal Inch) |
0.0157 |
| Corner Radius (mm) |
0.40 |
| Number Of Cutting Edges |
2 |
| Thickness (Decimal Inch – 4 Decimals) |
0.1320 |
| Coating/Finish |
TiCN, Al2O3, TiCN |
| Relief Angle |
15.00 |
| Maximum Depth of Cut (Decimal Inch) |
0.3750 |
| Insert Size Code |
080304 |
| Material Grade |
P25, K25 |
| Width (Inch) |
17/64 |
| Length (Inch) |
3/8 |
| Inscribed Circle (Inch) |
17/64 |
| Inscribed Circle (Decimal Inch) |
0.2660 |
| Thickness Range (Decimal Inch) |
0.1250 to 0.1500 |
| Corner Radius (Inch) |
1/64 |
| Inscribed Circle Range (Decimal Inch) |
0.2500 to 0.3000 |
| Length Range (Decimal Inch) |
0.3200 to 0.4000 |
| Insert Hand |
Right Hand |
| Series |
ADMT |
| Coating Process |
CVD |
| Rake |
Positive |
| Primary Workpiece Material |
Steel, Cast Iron |
| Primary Workpiece Material Code |
P, K |
| Ansi Code |
ADMT080304R-F56 WKP25S |
| Iso Code |
ADMT080304R-F56 WKP25S |
| Standards |
ANSI, ISO |
| Rake Angle |
16 |
| Cutting Edge Style |
Chamfered, Honed |
| Manufacturers Catalog Number |
ADMT080304R-F56 |
| Cutter Series Compatibility |
F4038, F4042 |
| Chip Breaker |
F56 |
| Material Application |
Steel, Cast Iron |
| UNSPSC Code |
23291601 |
| Insert Holding Method |
Screw |
| Coating Classification |
CVD |
| Single or Double Sided Insert |
Single |
| Included Angle Degree |
85 |
| Width (Decimal Inch – 4 Decimals) |
0.2660 |
| Width (mm – 2 Decimals) |
6.75 |
| Multi-Use Tool |
Yes |
| Length (Decimal Inch – 4 Decimals) |
0.3750 |
