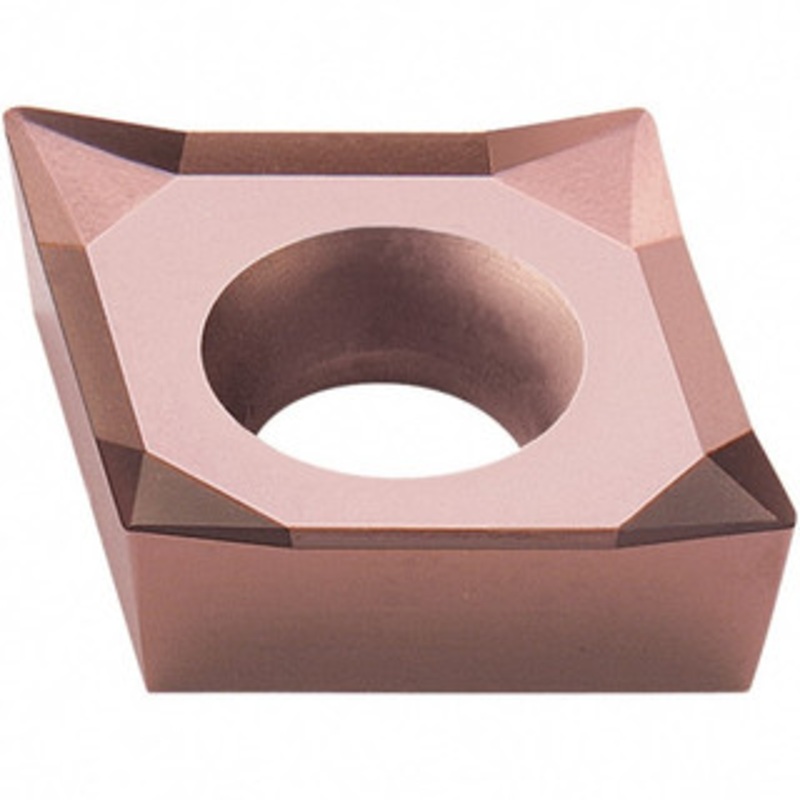

Walter Tools CCGT3(2.5).5-PM2WXN10 Carbide Turning Insert TiCN Plus Finish, 0.381″ Long, 3/8″ Inscribed Circle, 0.008″ Corner Radius, 5/32″ Thick, 80 Diamond, Series Tiger-tec
Manufacturer Part #: 5025571
S/N: 71742969
UNSPSC: 23242105
(Minimum Order Quantity=10, Package Quantity=1)
(Please order in multiples of 10)
Specifications:
| Relief Angle |
7 |
| Insert Style |
CCGT |
| Corner Radius (Inch) |
1/128 |
| Corner Radius (Decimal Inch) |
0.0080 |
| Included Angle |
80degree |
| Manufacturer Grade |
WXN10 |
| Coating/Finish |
TiCN Plus |
| Wiper Edge |
No |
| Insert Hand |
Neutral |
| Insert Thickness (Inch) |
5/32 |
| Insert Thickness (Decimal Inch) |
0.1563 |
| Series |
CCGT-PM2 |
| Inscribed Circle (Inch) |
3/8 |
| Inscribed Circle (Decimal Inch) |
0.3750 |
| Insert Material |
Carbide |
| Insert Shape |
Diamond 80 |
| Number Of Cutting Edges |
2 |
| Insert Shape Code |
C |
| Hole Diameter (Decimal Inch) |
0.1730 |
| Maximum Depth of Cut (mm) |
1.98 |
| Maximum Depth of Cut (Decimal Inch) |
0.0780 |
| Insert Holding Method |
Screw |
| Clearance Code |
C |
| Tolerance Code |
G |
| Coating Process |
PVD |
| Length Range (Decimal Inch) |
0.3000 – 0.4000 |
| Rake |
Positive |
| Insert Length (Decimal Inch) |
0.3810 |
| Primary Workpiece Material |
Non-Ferrous Metal |
| Primary Workpiece Material Code |
N |
| Secondary Workpiece Material |
Steel, Stainless Steel |
| Secondary Workpiece Material Code |
P, M |
| Iso Code |
CCGT09T302-PM2 WXN10 |
| Standards |
ANSI, ISO |
| Manufacturers Catalog Number |
5025571 |
| Material Grade |
M01, N10, P01 |
| Proprietary Coating Designation |
TiCN |
| Lead Angle |
80degree |
| Coating Classification |
PVD |
| Chip Breaker |
PM2 |
| Rake Angle |
25 |
| Cutting Edge Style |
Sharp |
| Industry Standard Number |
CCGT3(2.5)0.5-PM2 WXN10 |
| Width (Decimal Inch – 4 Decimals) |
0.3810in |
| Multi-Use Tool |
Yes |
| Full Radius |
No |
| Multi-Use Application |
Turning, Facing, Boring |
| UNSPSC Code |
23242105 |
| Insert Size Code |
32.50.5 |
