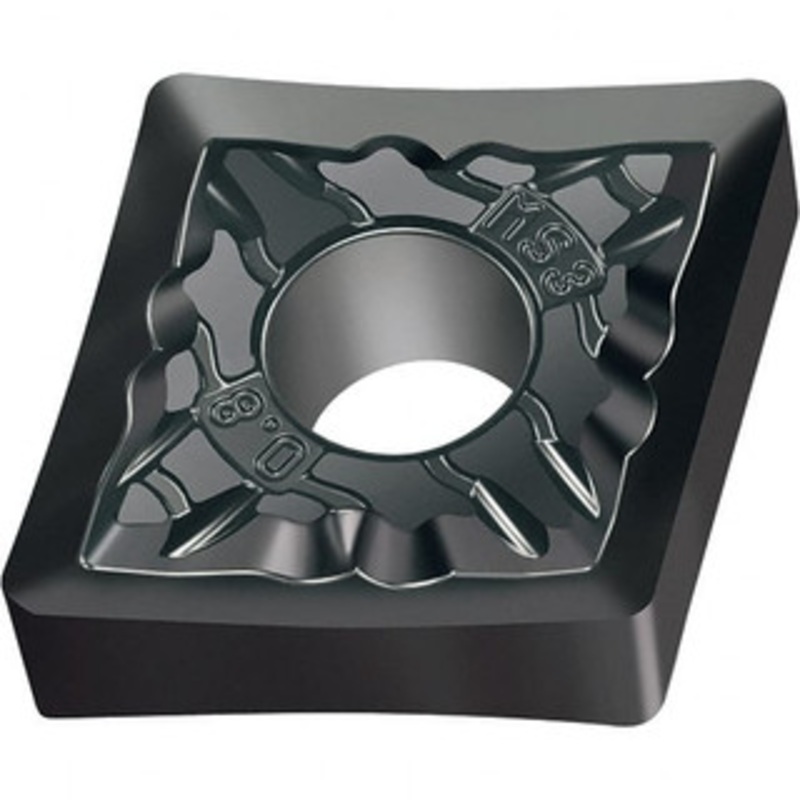

Walter Tools CNGG120404-MS3 WSM01 Turning Insert TiAlN+Al2O3+(ZrN) Finish, Neutral, 12.9mm Long, 12.7mm Inscribed Circle, 0.4mm Corner Radius, 4.76mm Thick, 80 Rhombic 80, Series CNGG-MS3
Manufacturer Part #: 7021457
S/N: 32312456
UNSPSC: 23242105
(Minimum Order Quantity=10, Package Quantity=1)
(Please order in multiples of 10)
Specifications:
| Relief Angle |
0 |
| Insert Style |
CNGG |
| Corner Radius (mm) |
0.40 |
| Corner Radius (Inch) |
1/64 |
| Corner Radius (Decimal Inch) |
0.0157 |
| Included Angle |
80degree |
| Manufacturer Grade |
WSM01 |
| Coating/Finish |
TiAlN |
| Wiper Edge |
No |
| Insert Hand |
Neutral |
| Insert Thickness |
4.76 |
| Insert Thickness (Inch) |
3/16 |
| Insert Thickness (Decimal Inch) |
0.1875 |
| Series |
CNGG-MS3 |
| Inscribed Circle (Inch) |
1/2 |
| Inscribed Circle (Decimal Inch) |
0.5000 |
| Inscribed Circle (mm) |
12.70 |
| Insert Material |
Carbide |
| Insert Shape |
Diamond 80 |
| Number Of Cutting Edges |
4 |
| Insert Shape Code |
C |
| Hole Diameter (Decimal Inch) |
0.2030 |
| Hole Diameter (Mm) ( – 0 Decimals) |
5.16 |
| Maximum Depth of Cut (mm) |
12.90 |
| Maximum Depth of Cut (Decimal Inch) |
0.5080 |
| Insert Holding Method |
Clamp, Pin |
| Clearance Code |
N |
| Tolerance Code |
G |
| Coating Process |
PVD |
| Length Range (Decimal Inch) |
0.5000 – 0.6000 |
| Rake |
Negative |
| Insert Length (mm) |
12.90 |
| Insert Length (Decimal Inch) |
0.5080 |
| Primary Workpiece Material |
Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code |
M, S |
| Secondary Workpiece Material |
Steel, Non-Ferrous Metal, Hard Material |
| Secondary Workpiece Material Code |
P, N, H |
| Iso Code |
CNGG120404-MS3 WSM01 |
| Standards |
ANSI, ISO |
| Manufacturers Catalog Number |
7021457 |
| Material Grade |
M10, S10, P10, N10, H20 |
| Proprietary Coating Designation |
WSM01 |
| Lead Angle |
80degree |
| Coating Classification |
PVD |
| Chip Breaker |
MS3 |
| Rake Angle |
13 |
| Cutting Edge Style |
Honed |
| Industry Standard Number |
CNGG431-MS3 WSM01 |
| Width (Decimal Inch – 4 Decimals) |
0.5080in |
| Width (mm – 2 Decimals) |
12.90 |
| Multi-Use Tool |
Yes |
| Full Radius |
No |
| Multi-Use Application |
Turning, Facing, Boring |
| UNSPSC Code |
23242105 |
| Insert Size Code |
431 |
