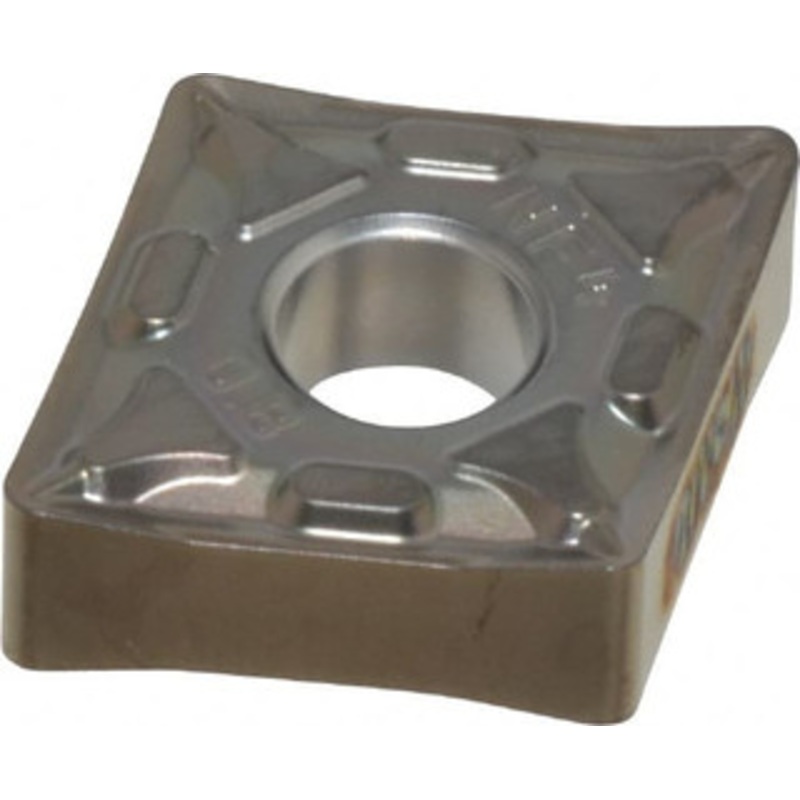

Walter Tools CNMG432-NF4WSM10 Carbide Turning Insert 1/2 Inscribed Circle, 1/32 Corner Radius, 80 Diamond 5847592 – 71746820

Walter Tools CNMG432-NF4WSM10 Carbide Turning Insert 1/2 Inscribed Circle, 1/32 Corner Radius, 80 Diamond 5847592 – 71746820

  • $14.84
  • $24.73
Availability: In Stock

Walter Tools CNMG432-NF4WSM10 Carbide Turning Insert 1/2" Inscribed Circle, 1/32" Corner Radius, 80 DiamondManufacturer Part #: 5847592S/N: 71746820UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:ANSI Insert CodeCNMG432ISO Inse

Category:
Share:
payment
Description Reviews (0)

Walter Tools CNMG432-NF4WSM10 Carbide Turning Insert 1/2″ Inscribed Circle, 1/32″ Corner Radius, 80 Diamond

Manufacturer Part #: 5847592

S/N: 71746820

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

ANSI Insert Code CNMG432 ISO Insert Code CNMG120408 Relief Angle 0 Insert Style CNMG Corner Radius (Inch) 1/32 Corner Radius (Decimal Inch) 0.0315 Included Angle 80 Manufacturer Grade WSM10 Coating/Finish TiAlN, Al2O3, ZrCN Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series CNMG-NF4 Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Inscribed Circle (mm) 12.70 Insert Material Carbide Insert Shape C – Diamond (Rhombic) 80-Deg Number Of Cutting Edges 4 Side Clearance Negative Insert Shape Code C Hole Diameter (Decimal Inch) 0.2030 Maximum Depth of Cut (Decimal Inch) 0.1692 Insert Holding Method Clamp, Pin Clearance Code N Tolerance Code M Coating Process PVD Length Range (Decimal Inch) 0.5000 – 0.6000 Rake Negative Insert Length (Decimal Inch) 0.5080 Primary Workpiece Material Stainless Steel, Superalloys & Titanium Primary Workpiece Material Code M, S Secondary Workpiece Material Steel Secondary Workpiece Material Code P Iso Code CNMG120408-NF4 WSM10 Standards ANSI, ISO Manufacturers Catalog Number 5847592 Material Grade M10, P10, S10 Proprietary Coating Designation Multilayer Coating Lead Angle 80 Coating Classification PVD Chip Breaker NF4 Rake Angle 18 Cutting Edge Style Honed Industry Standard Number CNMG432-NF4 WSM10 Width (Decimal Inch – 4 Decimals) 0.5080 Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring ANSI Size Code 432 ISO Size Code 120408 UNSPSC Code 23242105 Insert Size Code 432
