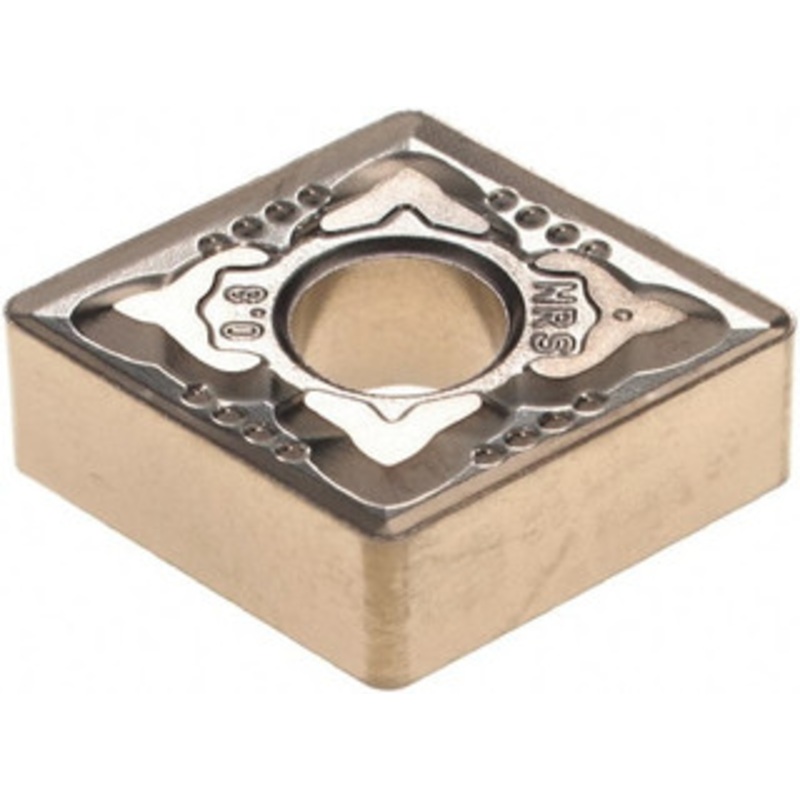

Walter Tools CNMG432-NRS WSM10 Carbide Turning Insert TiAlN/Al2O3/ZrCN Finish, 12.9mm Long, 1/2 Inscribed Circle, 1/32 Corner Radius, 80 Diamond, Series Tiger-tec 5866883 – 36318277

Walter Tools CNMG432-NRS WSM10 Carbide Turning Insert TiAlN/Al2O3/ZrCN Finish, 12.9mm Long, 1/2 Inscribed Circle, 1/32 Corner Radius, 80 Diamond, Series Tiger-tec 5866883 – 36318277

  • $14.84
  • $24.73
Availability: In Stock

Walter Tools CNMG432-NRS WSM10 Carbide Turning Insert TiAlN/Al2O3/ZrCN Finish, 12.9mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 Diamond, Series Tiger-tecManufacturer Part #: 5866883S/N: 36318277UNSPSC: 23242105(Minimum Order Quantity=1, Package

Category:
Share:
payment
Description Reviews (0)

Walter Tools CNMG432-NRS WSM10 Carbide Turning Insert TiAlN/Al2O3/ZrCN Finish, 12.9mm Long, 1/2″ Inscribed Circle, 1/32″ Corner Radius, 80 Diamond, Series Tiger-tec

Manufacturer Part #: 5866883

S/N: 36318277

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Relief Angle 0 Insert Style CNMG Corner Radius (Inch) 1/32 Corner Radius (Decimal Inch) 0.0315 Included Angle 80degree Manufacturer Grade WSM10 Coating/Finish TiAlN, Al2O3, ZrCN Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series CNMG-NRS Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Insert Material Carbide Insert Shape Diamond 80 Number Of Cutting Edges 4 Insert Shape Code C Hole Diameter (Decimal Inch) 0.2030 Maximum Depth of Cut (mm) 3.99 Maximum Depth of Cut (Decimal Inch) 0.1570 Insert Holding Method Clamp, Pin Clearance Code N Tolerance Code M Coating Process PVD Length Range (Decimal Inch) 0.5000 – 0.6000 Rake Negative Insert Length (mm) 12.90 Insert Length (Decimal Inch) 0.5080 Primary Workpiece Material Stainless Steel, Superalloys & Titanium Primary Workpiece Material Code M, S Secondary Workpiece Material Steel Secondary Workpiece Material Code P Iso Code CNMG120408-NRS WSM10 Standards ANSI, ISO Manufacturers Catalog Number 5866883 Material Grade M10, P10, S10 Proprietary Coating Designation Multilayer Coating Lead Angle 80degree Coating Classification PVD Chip Breaker NRS Rake Angle 19 Cutting Edge Style Chamfered & Honed Industry Standard Number CNMG432-NRS WSM10 Width (Decimal Inch – 4 Decimals) 0.5080in Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring UNSPSC Code 23242105 Insert Size Code 432
