Walter Tools CNMG432MP5 WPP10S Carbide Turning Insert TiCN/Al2O3/TiN Finish, 12.9mm Long, 1/2 Inscribed Circle, 1/32 Corner Radius, 80 Diamond, Series Tiger-tec 6059642 – 69242535

Walter Tools CNMG432MP5 WPP10S Carbide Turning Insert TiCN/Al2O3/TiN Finish, 12.9mm Long, 1/2 Inscribed Circle, 1/32 Corner Radius, 80 Diamond, Series Tiger-tec 6059642 – 69242535

  • $15.30
  • $25.50
Availability: In Stock

Walter Tools CNMG432MP5 WPP10S Carbide Turning Insert TiCN/Al2O3/TiN Finish, 12.9mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 Diamond, Series Tiger-tecManufacturer Part #: 6059642S/N: 69242535UNSPSC: 23242105(Minimum Order Quantity=1, Package Qu

Category:
Share:
payment
Description Reviews (0)

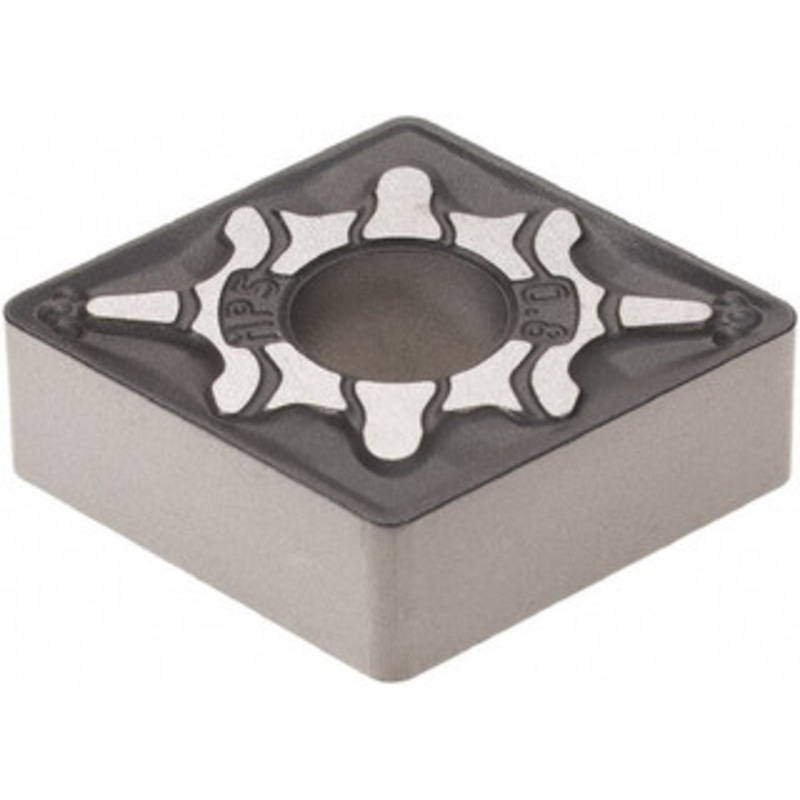

Walter Tools CNMG432MP5 WPP10S Carbide Turning Insert TiCN/Al2O3/TiN Finish, 12.9mm Long, 1/2″ Inscribed Circle, 1/32″ Corner Radius, 80 Diamond, Series Tiger-tec

Manufacturer Part #: 6059642

S/N: 69242535

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Relief Angle 0 Insert Style CNMG Corner Radius (mm) 0.03 Corner Radius (Inch) 1/32 Corner Radius (Decimal Inch) 0.0315 Included Angle 80degree Manufacturer Grade WPP10S Coating/Finish TiCN, Al2O3, TiN Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series CNMG-MP5 Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Insert Material Carbide Insert Shape Diamond 80 Number Of Cutting Edges 4 Insert Shape Code C Hole Diameter (Decimal Inch) 0.2030 Maximum Depth of Cut (mm) 5.00 Maximum Depth of Cut (Decimal Inch) 0.1970 Insert Holding Method Clamp, Pin Clearance Code N Tolerance Code M Coating Process CVD Length Range (Decimal Inch) 0.5000 – 0.6000 Rake Negative Insert Length (mm) 12.90 Insert Length (Decimal Inch) 0.5080 Primary Workpiece Material Steel Primary Workpiece Material Code P Secondary Workpiece Material Cast Iron Secondary Workpiece Material Code K Iso Code CNMG120408-MP5 WPP10S Standards ANSI, ISO Manufacturers Catalog Number 6059642 Material Grade P10, K20 Proprietary Coating Designation WPP10S Lead Angle 80degree Coating Classification CVD Chip Breaker MP5 Rake Angle 15 Cutting Edge Style Chamfered & Honed Industry Standard Number CNMG432-MP5 WPP10S Width (Decimal Inch – 4 Decimals) 0.5080in Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring UNSPSC Code 23242105 Insert Size Code 432
