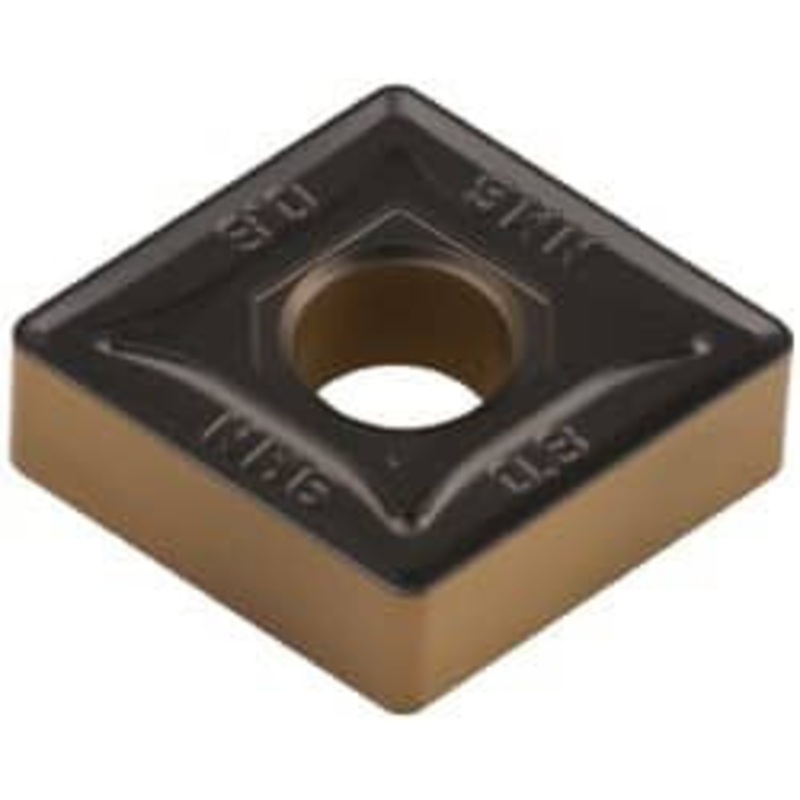

Walter Tools CNMG433-NM6WPP20 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 1/2 Inscribed Circle, 3/64 Corner Radius, 80 Diamond 5092677 – 71747471

Walter Tools CNMG433-NM6WPP20 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 1/2 Inscribed Circle, 3/64 Corner Radius, 80 Diamond 5092677 – 71747471

  • $14.76
  • $24.60
Availability: In Stock

Walter Tools CNMG433-NM6WPP20 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 1/2" Inscribed Circle, 3/64" Corner Radius, 80 DiamondManufacturer Part #: 5092677S/N: 71747471UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:Relief A

Category:
Share:
payment
Description Reviews (0)

Walter Tools CNMG433-NM6WPP20 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 1/2″ Inscribed Circle, 3/64″ Corner Radius, 80 Diamond

Manufacturer Part #: 5092677

S/N: 71747471

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Relief Angle 0 Insert Style CNMG Corner Radius (Inch) 3/64 Corner Radius (Decimal Inch) 0.0469 Included Angle 80degree Manufacturer Grade WPP20 Coating/Finish TiCN, Al2O3, TiN Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series CNMG-NM6 Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Insert Material Carbide Insert Shape Diamond 80 Number Of Cutting Edges 4 Insert Shape Code C Hole Diameter (Decimal Inch) 0.2030 Hole Diameter (Mm) ( – 0 Decimals) 5.13 Maximum Depth of Cut (Decimal Inch) 0.1692 Insert Holding Method Clamp, Pin Clearance Code N Tolerance Code M Coating Process CVD Length Range (Decimal Inch) 0.5000 – 0.6000 Rake Negative Insert Length (Decimal Inch) 0.5080 Primary Workpiece Material Steel Primary Workpiece Material Code P Secondary Workpiece Material Cast Iron Secondary Workpiece Material Code K Iso Code CNMG120412-NM6 WPP20 Standards ANSI, ISO Manufacturers Catalog Number 5092677 Material Grade K30, P20 Proprietary Coating Designation Multilayer Coating Lead Angle 80degree Coating Classification CVD Chip Breaker NM6 Rake Angle 18 Cutting Edge Style Chamfered & Honed Industry Standard Number CNMG433-NM6 WPP20 Width (Decimal Inch – 4 Decimals) 0.5080in Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring UNSPSC Code 23242105 Insert Size Code 433
