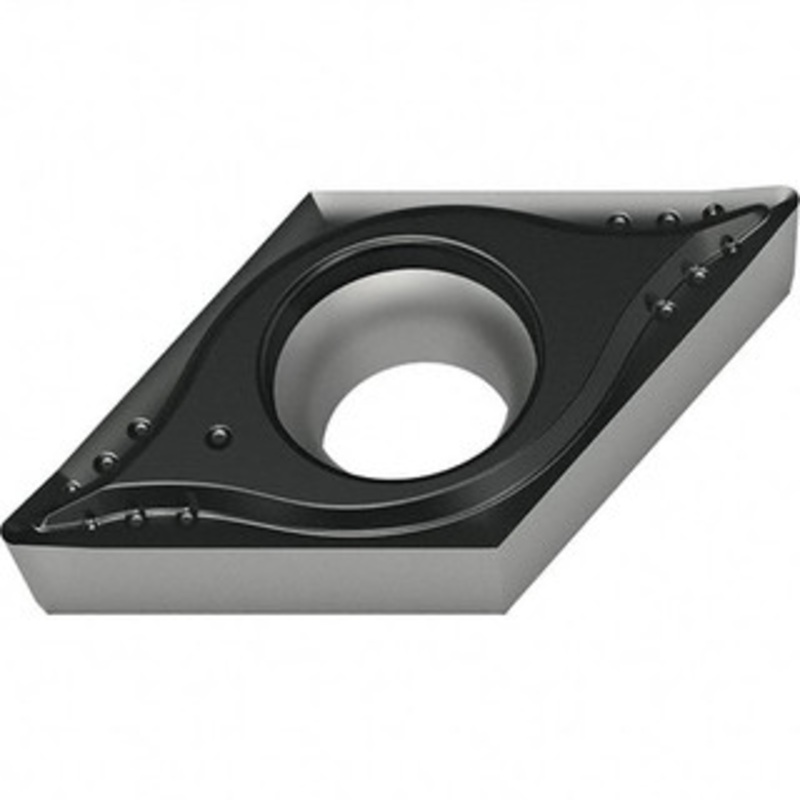

Walter Tools DCGT11T304-MM4 WSM20S Turning Insert TiAlN+Al2O3+(Al) Finish, Neutral, 11.63mm Long, 9.53mm Inscribed Circle, 0.4mm Corner Radius, 3.97mm Thick, 55 Rhombic 55, Series DCGT-MM4
Manufacturer Part #: 6844622
S/N: 47312533
UNSPSC: 23242105
(Minimum Order Quantity=10, Package Quantity=1)
(Please order in multiples of 10)
Specifications:
| Relief Angle |
7 |
| Insert Style |
DCGT |
| Corner Radius (mm) |
0.40 |
| Corner Radius (Inch) |
1/64 |
| Corner Radius (Decimal Inch) |
0.0157 |
| Included Angle |
55degree |
| Manufacturer Grade |
WSM20S |
| Coating/Finish |
TiCN, Al2O3, Al |
| Wiper Edge |
No |
| Insert Hand |
Neutral |
| Insert Thickness |
3.97 |
| Insert Thickness (Inch) |
5/32 |
| Insert Thickness (Decimal Inch) |
0.1563 |
| Series |
DCGT-MM4 |
| Inscribed Circle (Inch) |
3/8 |
| Inscribed Circle (Decimal Inch) |
0.3750 |
| Inscribed Circle (mm) |
9.53 |
| Insert Material |
Carbide |
| Insert Shape |
Diamond 55 |
| Number Of Cutting Edges |
2 |
| Insert Shape Code |
D |
| Hole Diameter (Decimal Inch) |
0.1730 |
| Hole Diameter (Mm) ( – 0 Decimals) |
4.40 |
| Maximum Depth of Cut (mm) |
11.63 |
| Maximum Depth of Cut (Decimal Inch) |
0.4580 |
| Insert Holding Method |
Screw |
| Width (Inch) |
3/8in |
| Clearance Code |
C |
| Tolerance Code |
G |
| Coating Process |
PVD |
| Length Range (Decimal Inch) |
0.4000 – 0.5000 |
| Rake |
Positive |
| Insert Length (mm) |
11.63 |
| Insert Length (Decimal Inch) |
0.4580 |
| Primary Workpiece Material |
Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code |
M, S |
| Secondary Workpiece Material |
Steel |
| Secondary Workpiece Material Code |
P |
| Iso Code |
DCGT11T304-MM4 WSM20S |
| Standards |
ANSI, ISO |
| Manufacturers Catalog Number |
6844622 |
| Material Grade |
M20, S20, P20 |
| Proprietary Coating Designation |
WSM20S |
| Lead Angle |
55degree |
| Coating Classification |
PVD |
| Chip Breaker |
MM4 |
| Rake Angle |
7 |
| Cutting Edge Style |
Honed |
| Industry Standard Number |
DCGT3(2.5)1-MM4 WSM20S |
| Width (Decimal Inch – 4 Decimals) |
0.3750in |
| Width (mm – 2 Decimals) |
11.63 |
| Multi-Use Tool |
Yes |
| Full Radius |
No |
| Multi-Use Application |
Turning, Facing, Boring, Back Turning |
| UNSPSC Code |
23242105 |
| Insert Size Code |
32.51 |
