Walter Tools DCMT32.51-MP4 WPP20S Carbide Turning Insert Neutral, 3/8 Inscribed Circle, 1/64 Corner Radius, 55 Diamond 6413469 – 47054176

Walter Tools DCMT32.51-MP4 WPP20S Carbide Turning Insert Neutral, 3/8 Inscribed Circle, 1/64 Corner Radius, 55 Diamond 6413469 – 47054176

  • $14.69
  • $24.48
Availability: In Stock

Walter Tools DCMT32.51-MP4 WPP20S Carbide Turning Insert Neutral, 3/8" Inscribed Circle, 1/64" Corner Radius, 55 DiamondManufacturer Part #: 6413469S/N: 47054176UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:Relief Angle7Inser

Category:
Share:
payment
Description Reviews (0)

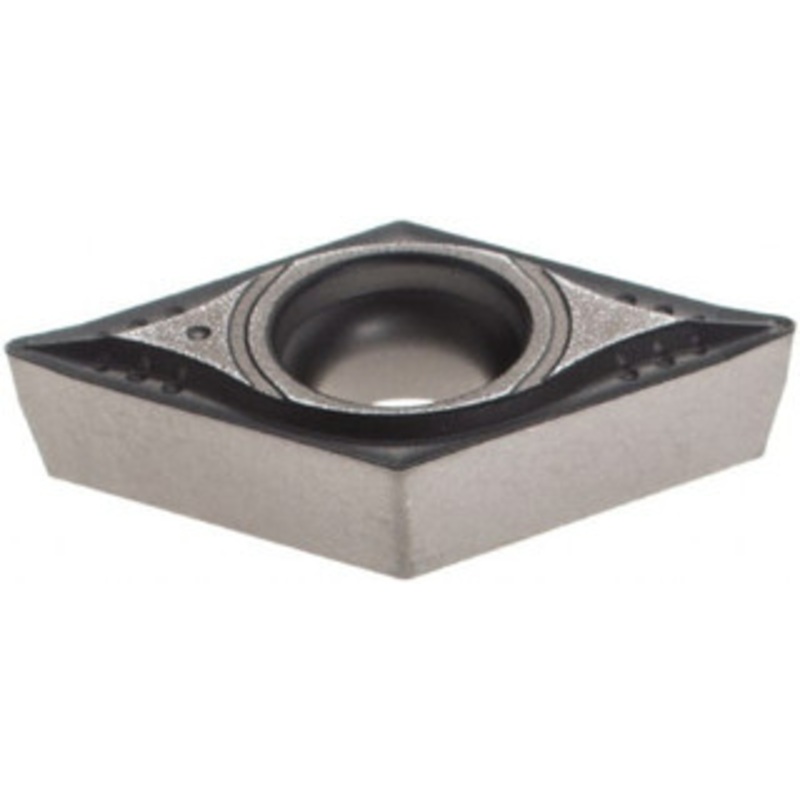

Walter Tools DCMT32.51-MP4 WPP20S Carbide Turning Insert Neutral, 3/8″ Inscribed Circle, 1/64″ Corner Radius, 55 Diamond

Manufacturer Part #: 6413469

S/N: 47054176

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Relief Angle 7 Insert Style DCMT Corner Radius (Inch) 1/64 Corner Radius (Decimal Inch) 0.0157 Included Angle 55degree Manufacturer Grade WPP20S Coating/Finish TiCN, Al2O3, TiCN Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 5/32 Insert Thickness (Decimal Inch) 0.1563 Series DCMT-MP4 Inscribed Circle (Inch) 3/8 Inscribed Circle (Decimal Inch) 0.3750 Insert Material Carbide Insert Shape Diamond 55 Number Of Cutting Edges 2 Insert Shape Code D Hole Diameter (Decimal Inch) 0.1730 Maximum Depth of Cut (mm) 3.00 Maximum Depth of Cut (Decimal Inch) 0.1000 Insert Holding Method Screw Width (Inch) 3/8in Clearance Code C Tolerance Code M Coating Process CVD Length Range (Decimal Inch) 0.4000 – 0.5000 Rake Positive Insert Length (Decimal Inch) 0.4580 Primary Workpiece Material Steel Primary Workpiece Material Code P Secondary Workpiece Material Cast Iron Secondary Workpiece Material Code K Iso Code DCMT11T304-MP4 WPP20S Standards ANSI, ISO Manufacturers Catalog Number 6413469 Material Grade P20, K30 Proprietary Coating Designation WPP20S Lead Angle 55degree Coating Classification CVD Chip Breaker MP4 Rake Angle 7 Cutting Edge Style Honed Industry Standard Number DCMT3(2.5)1-MP4 WPP20S Width (Decimal Inch – 4 Decimals) 0.3750in Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring, Back Turning UNSPSC Code 23242105 Insert Size Code 32.51
